Product Details

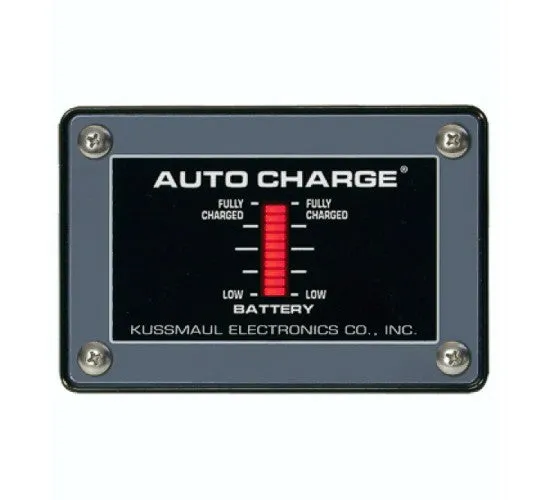

Here we have a Kussmaul Single Bar Graph Display 091-199-001. It is to be used with the following systems:

Auto Charge 1000 PLC
Auto Charge 35/10
Pump Plus 1200 AC
Auto Charge 1200
Auto Charge 1200 Remote

Indicator Installation:
1. Locate the Indicator in a convenient place on the vehicle.

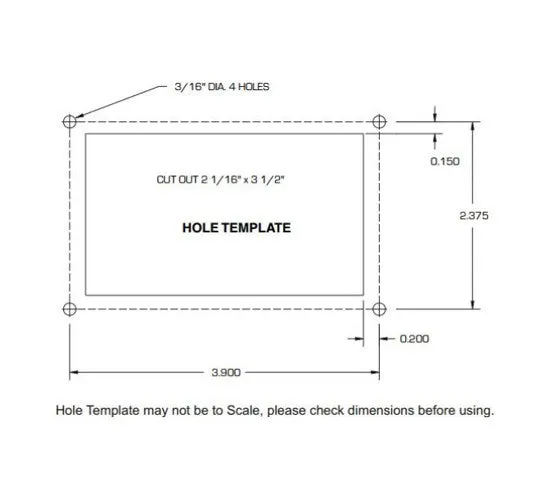

2. Place the template in position and center punch in 4 places.
3. Drill holes as shown.
4. Cut out a square hole.
5. Connect wiring to the charger in accordance with the instructions in the charger installation instructions.

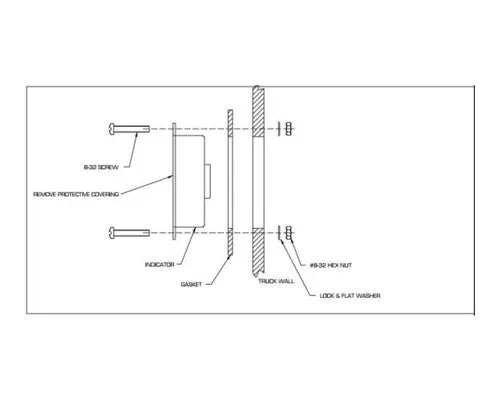

6. Install as shown.
7. Insert (4) #8-32 screws supplied and tighten.

CAUTION: Do not over-tighten because you will bend the plastic bezel and break the watertight seal
