SPECS

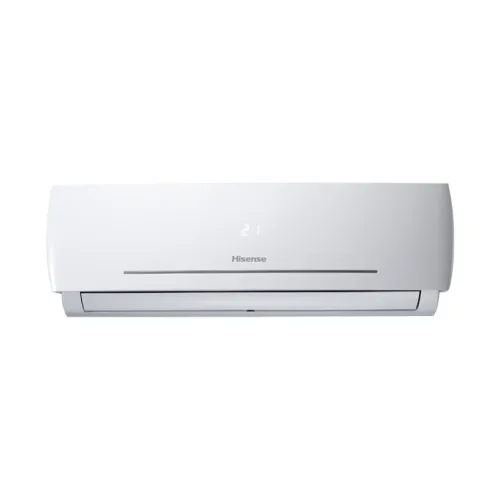

Manufacture Model
AS-12UR4SVETD12
Type Of AC
Heat pump
RATING
Cooling Capacity
3400(1000-3700)
Heating Capacity
3650(1000-4700)
Power Input-Cooling
1008(200-1300)
Power Input-Heating
1050(200-1500)
Moisture Removal
1.2
Air Circulation
600
EER
3.37301587301587
COP
3.47619047619048
Energy Class for Argentina (Cooling)
A
Energy Class for Argentina (Heating)
A
Refrigerant
R410A
Refrigerant volumn
800
Unit Noise Level
INDOOR: (HIGH) = 39, (LOW) = 30 / OUTDOOR: 53
POWER SUPPLY
Voltage, Frequency, Phase
220-240V~,50Hz,1P
Rated Current Cooling (A)
5.4
Rated Current Heating (A)
4.7
LRA
–
SYSTEM
Compressor type
Rotary
Compressor Model No.
QA108MJA
Compressor MFG
LG
Expansion Device
flow restrictor
Evaporator
Copper tube and Aluminum Fin
Condenser
Copper tube and Aluminum Fin
CONNECTING PIPE DIAMETER
Liquid Pipe (inch)
1/4
Gas Pipe (inch)
3/8
Maximum connection pipe length
15
Maximum height difference
5
Display on Front Panel
LED
LCD Wireless Remote Controller
Yes
Removable and washable Panel
Yes
Active Charcoal Filter
Optional
Electrostatic Filter
Optional
LTC Filter
Optional
Catechin filter
Optional
Negative ion filter
Optional
Photic Catalyst filter
Optional
Vitamin-C filter
Optional
Dimmer
Yes
24 Hours Timer
Yes
Timer ON/OFF
Yes
5 Speed and Auto Indoor Fan Control
Yes
Silent Mode
Yes
Horizontal Auto Swing Louver
Yes
Manual Adjustable Vertical Louver
Yes
Top Down Horizontal louvers features for cooling mode
Yes
Sleep function
Yes
Smart sense function
Yes
Super function
Yes
Compressor Indicator
Yes
Auto Restart
Yes
Auto Defrost
Yes
Dehumidification function
Yes
Cold air protection
Yes
FILTER INFORMATION
Washable PP filter
Yes
HEPA Filter
Optional
DIMENSIONS
Net Dimensions – WxHxD (mm) Indoor Unit
850×270×202
Net Dimensions – WxHxD (mm) Outdoor Unit
715×482×240
Net Weight (Kg) Indoor Unit
8.5
Net Weight (Kg) Outdoor Unit
27
Packing Dimensions WxHxD (mm) Indoor Unit
900x335x260
Packing Dimensions WxHxD (mm) Outdoor Unit
830×530×315
Gross Weight (Kg) Indoor Unit
11
Gross Weight (Kg) Outdoor Unit
29
Loading Capacity (20’/40’/40’HC ) without pipe
140/285/335
Loading Capacity (20’/40’/40’HC ) with pipe
134/280/320
Approvals
CB
