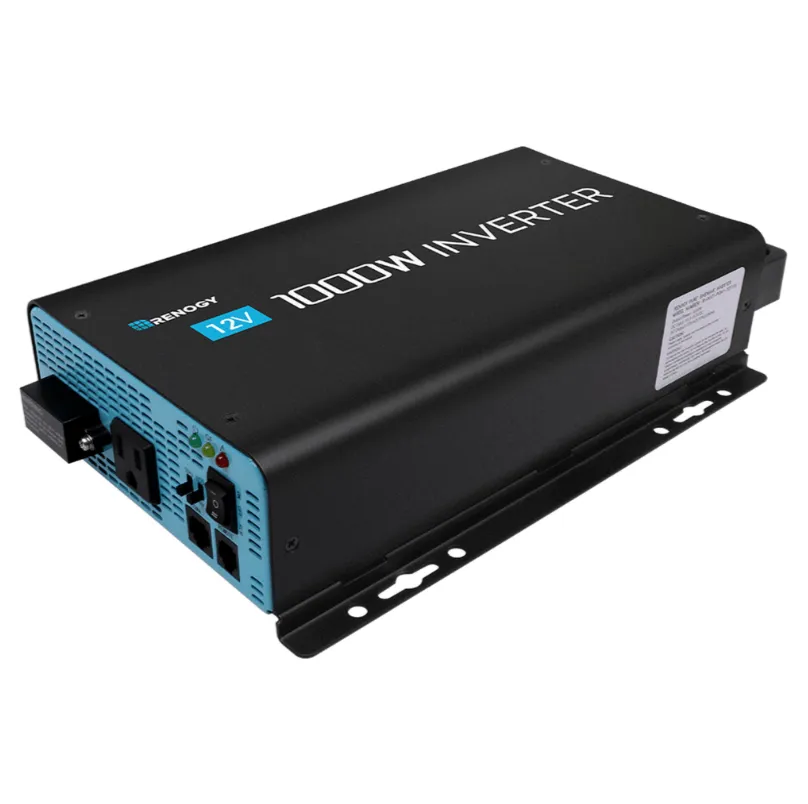

RENOGY 1000W 12V Pure Sine Wave Inverter with Power Saving Mode (New Edition) | R-INVT-PGH1-10111S
DESCRIPTION:
The new Renogy 1000W Pure Sine Wave Power Inverter transforms the DC power stored in batteries into standard household AC power for consumer electronic needs. As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate fans, lights, and other electronics without interference. This unit features an ECO Power Saving Mode which reduces the power consumption form the battery when no loads are detected. Pair this 12V solar accessory with any off-grid system, including vans, to run your everyday electronics.
KEY FEATURES:
- Optimized for 12 VDC system voltage.
- Offers high quality waveform with little harmonic distortion.
- LED indicators for under-voltage and over-voltage protection, over-temperature protection, overload protection, and short circuit indication.
- High-speed ventilation fans to help keep the inverter running at a low temperature.
- ECO Power Save Mode to conserve power from the battery.
- Overload protection for both DC input and AC output to prevent damage to the components and the unit.

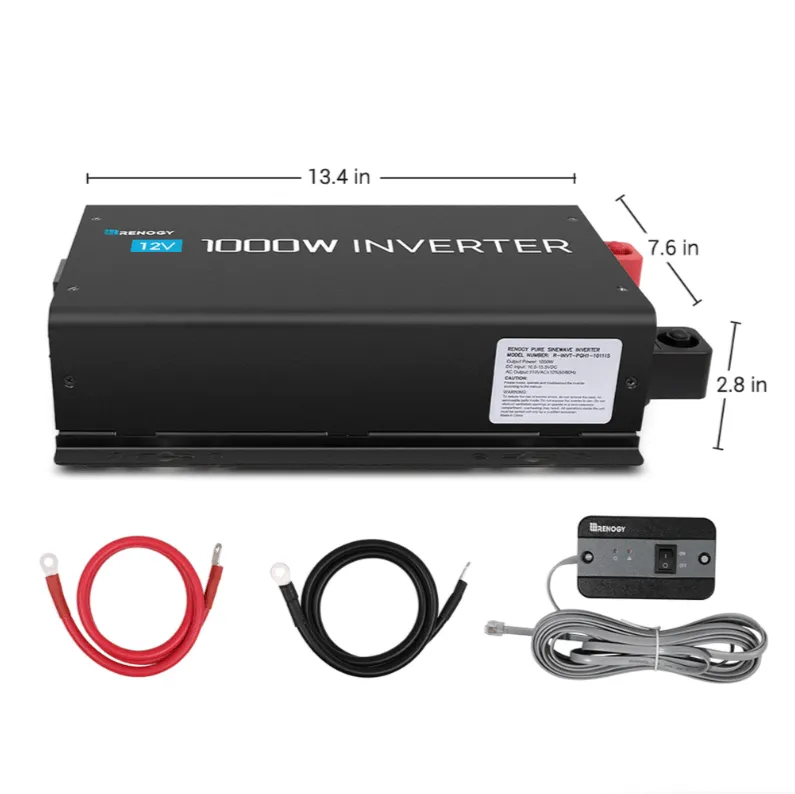

- 4AWG Cables and Wired Remote included.
- Built-in RS485 data communication port.
Specifications:
| RENOGY 1000W 12V PURE SINE WAVE INVERTER | |
|---|---|
| Continuous Power: 1000W | Surge Power: 2000W |
| AC Output Voltage Range : 110VAC ± 10% | Output Frequency (Nominal): 50/60 Hz ± 0.1% |
| Output Waveform: Pure Sine Wave | Efficiency: > 90% |
| THD: < 3% Linear Load | THD: < 5% Non-linear Load |
| No Load Current Draw: < 1.0A | Dimensions: 13.4 x 7.6 x 2.8 In |
| Weight: 6.42 lbs. | Operating Temperature: -4°F to - 158°F |
