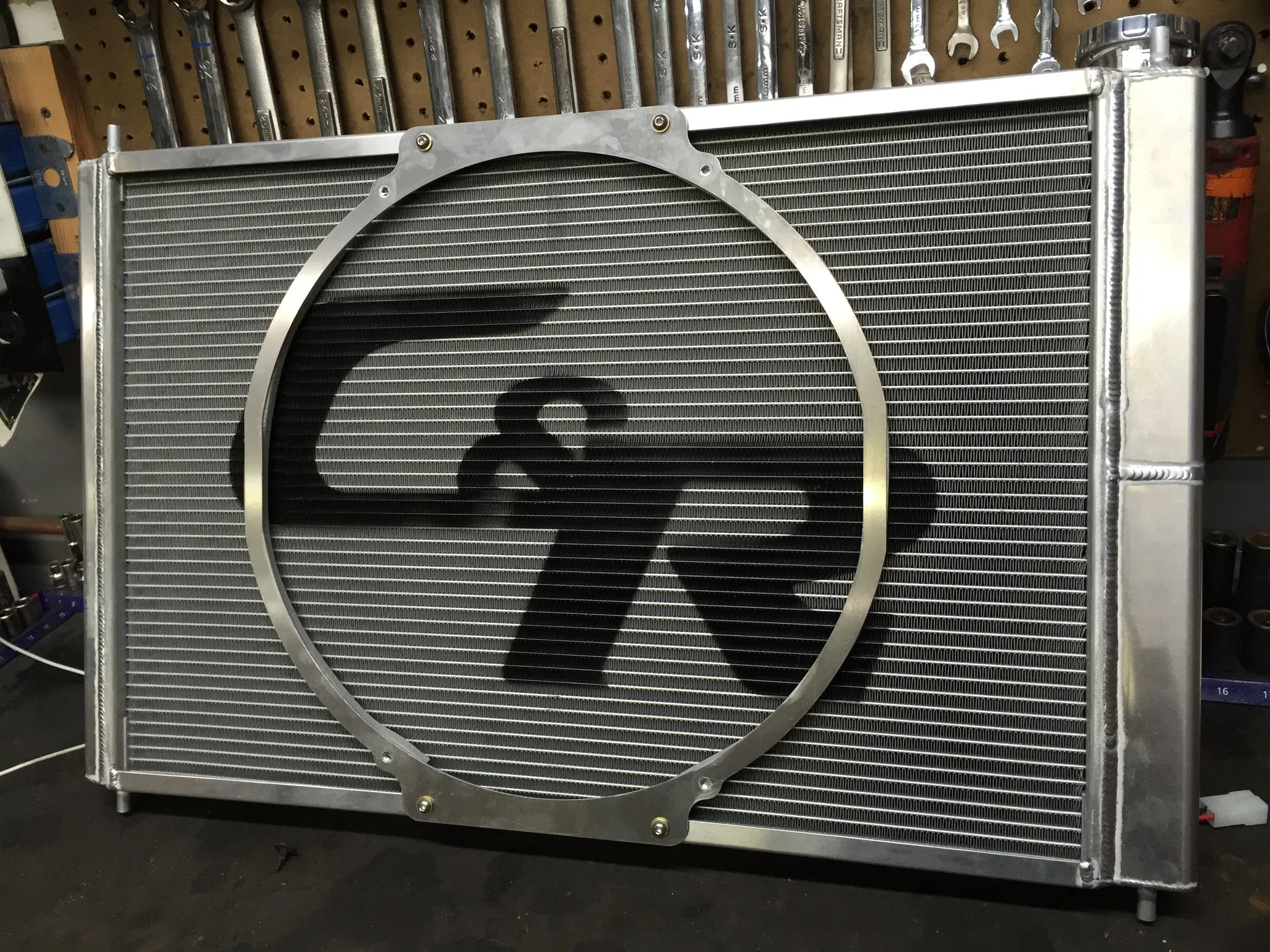

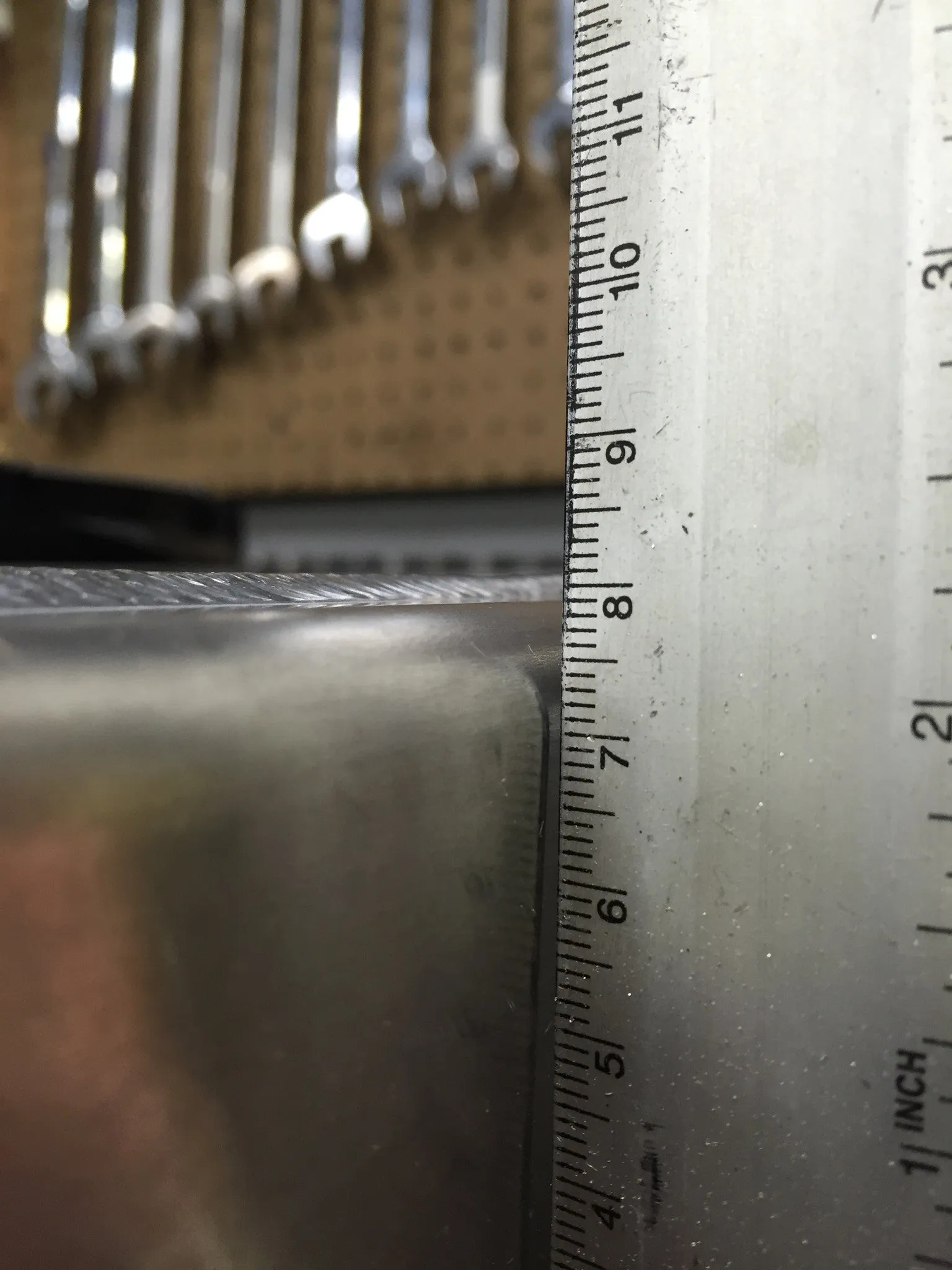

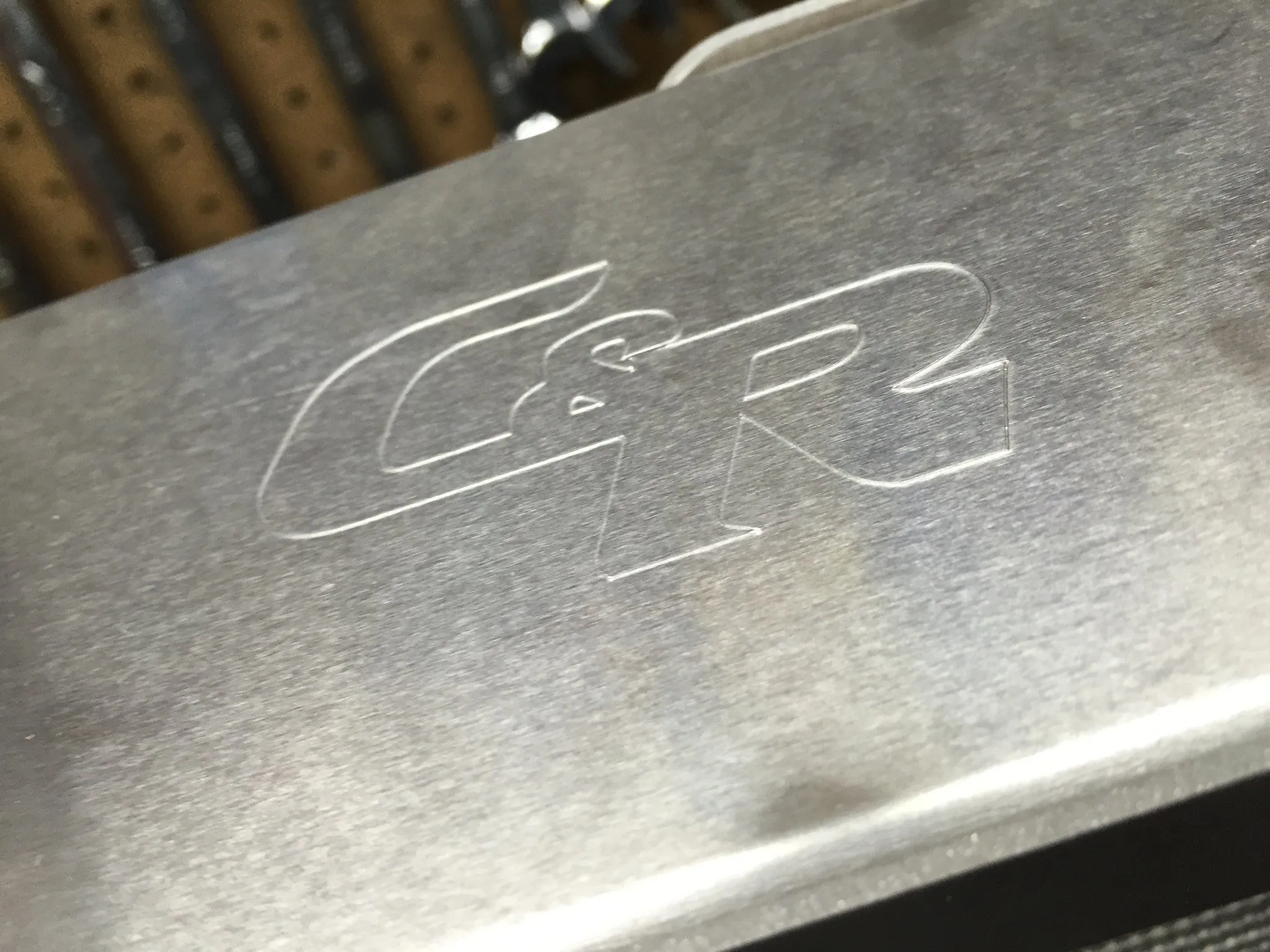

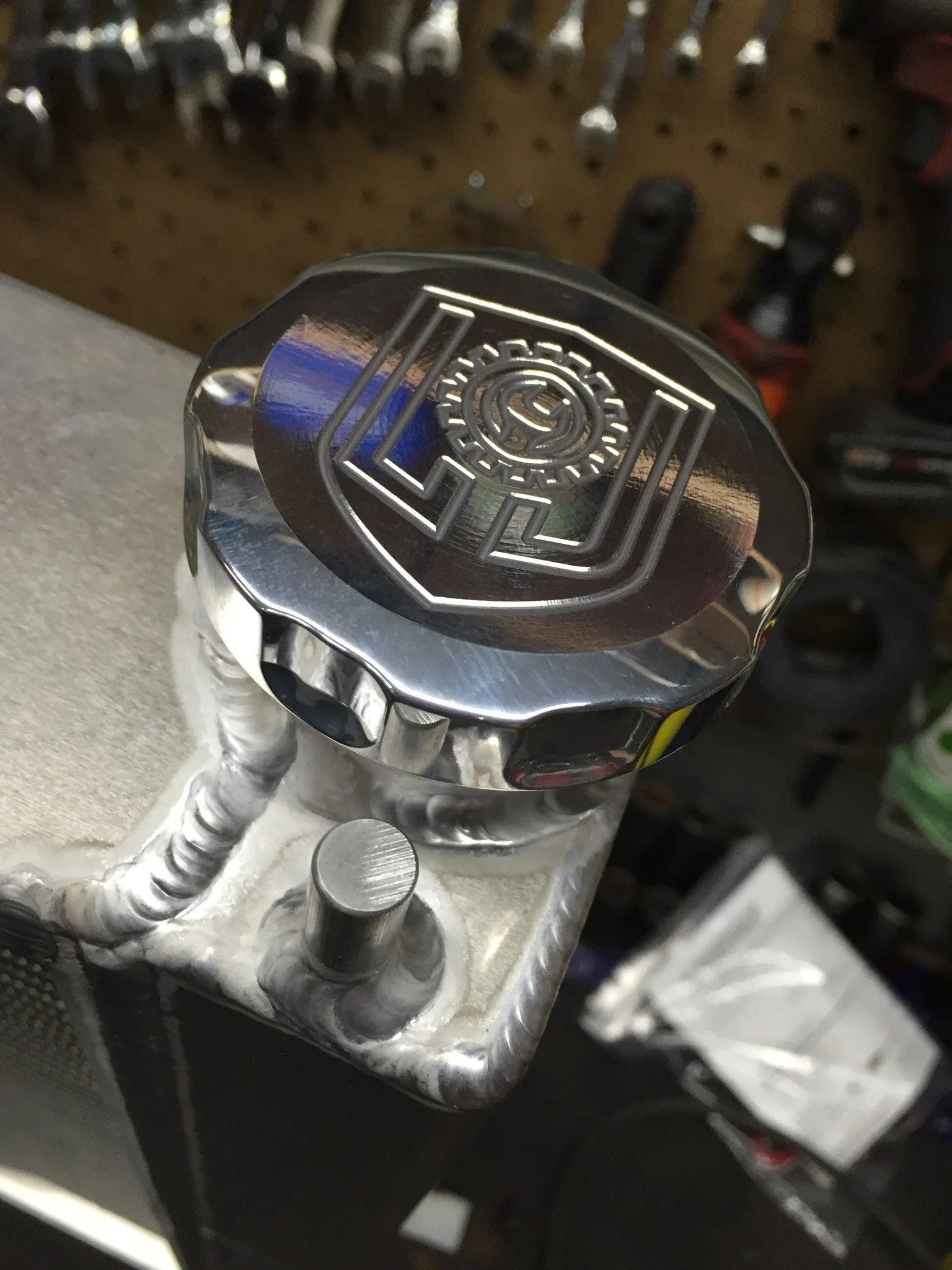

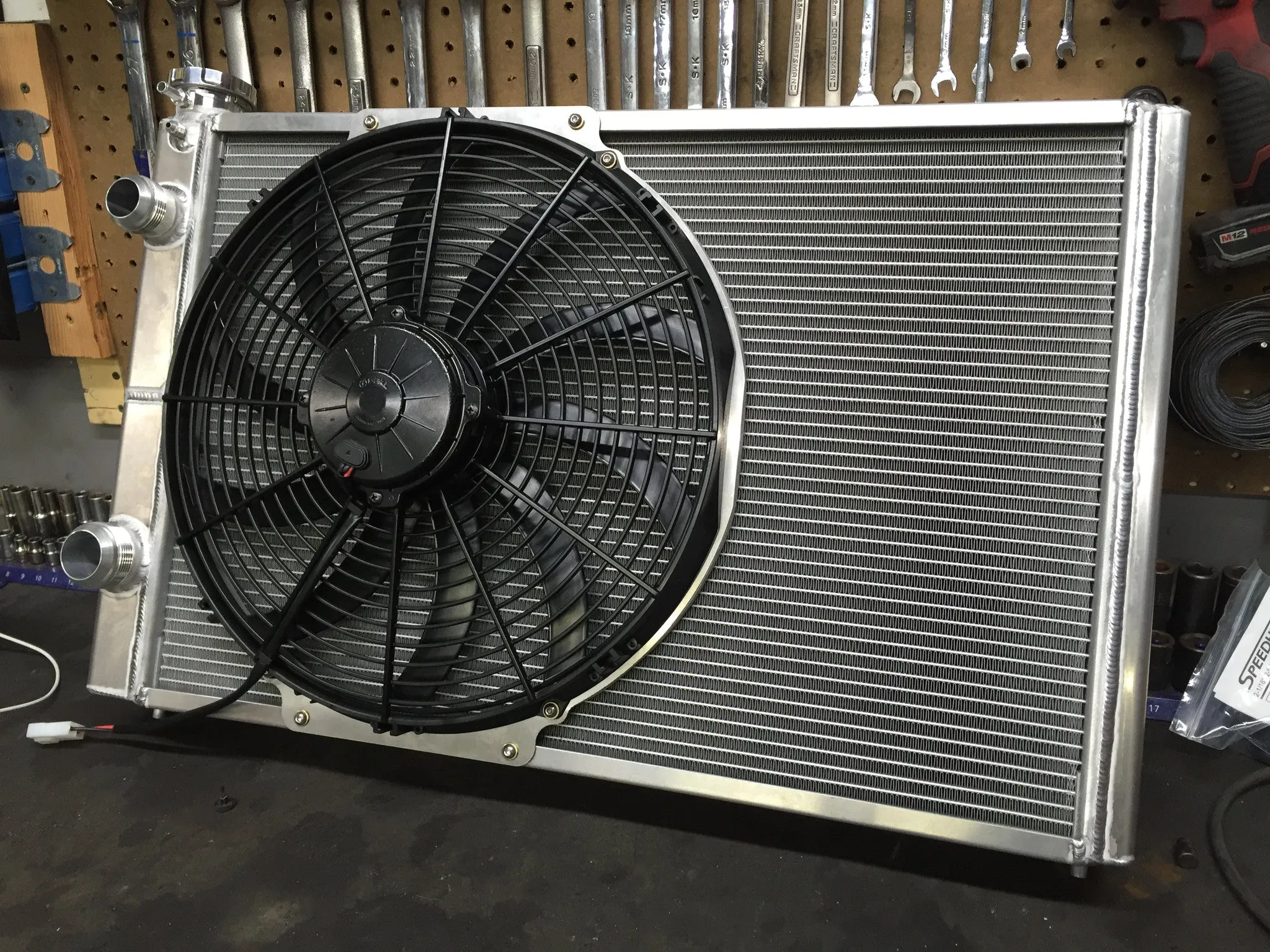

The LOJ Conversions LSx Swap Race Radiator is made exclusively for LOJ by renowned radiator manufacturer C&R Racing. It features fully TIG-Welded construction and a 3" Thick PWR radiator core. This is the ONLY radiator that LOJ recommends for use with our LS Swap Kits when the customer demands the best cooling possible under all driving conditions. This radiator requires modifications to the radiator support and the removal of Air Conditioning to install. The radiator drops right into the lower mounts previously used by the factory AC condenser. It includes one 16" High Output SPAL fan pre-installed on the back of the radiator and an additional mounting ring on the front of the radiator for a second 16" pusher fan if required. It also includes a Billet AL LOJ Radiator Cap.

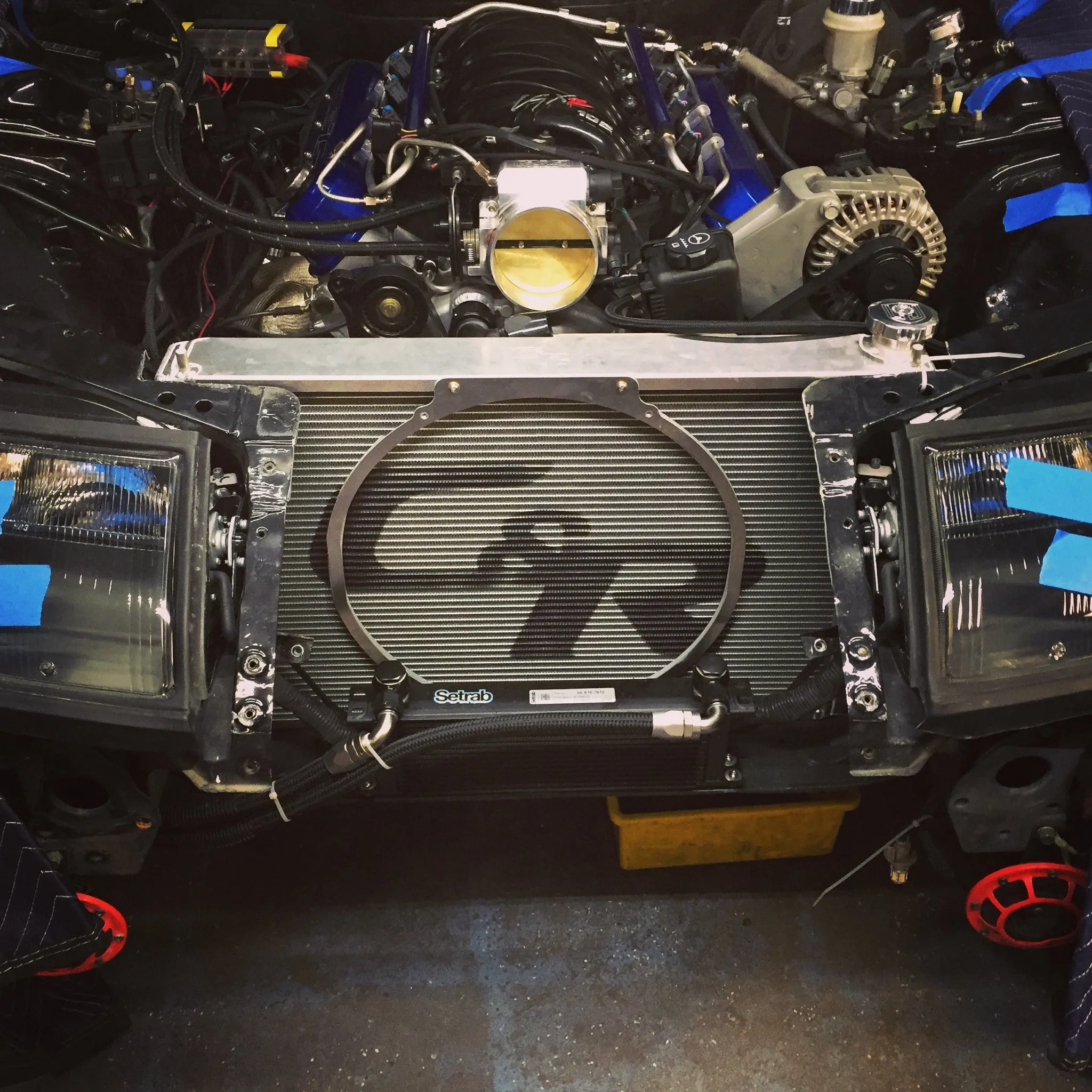

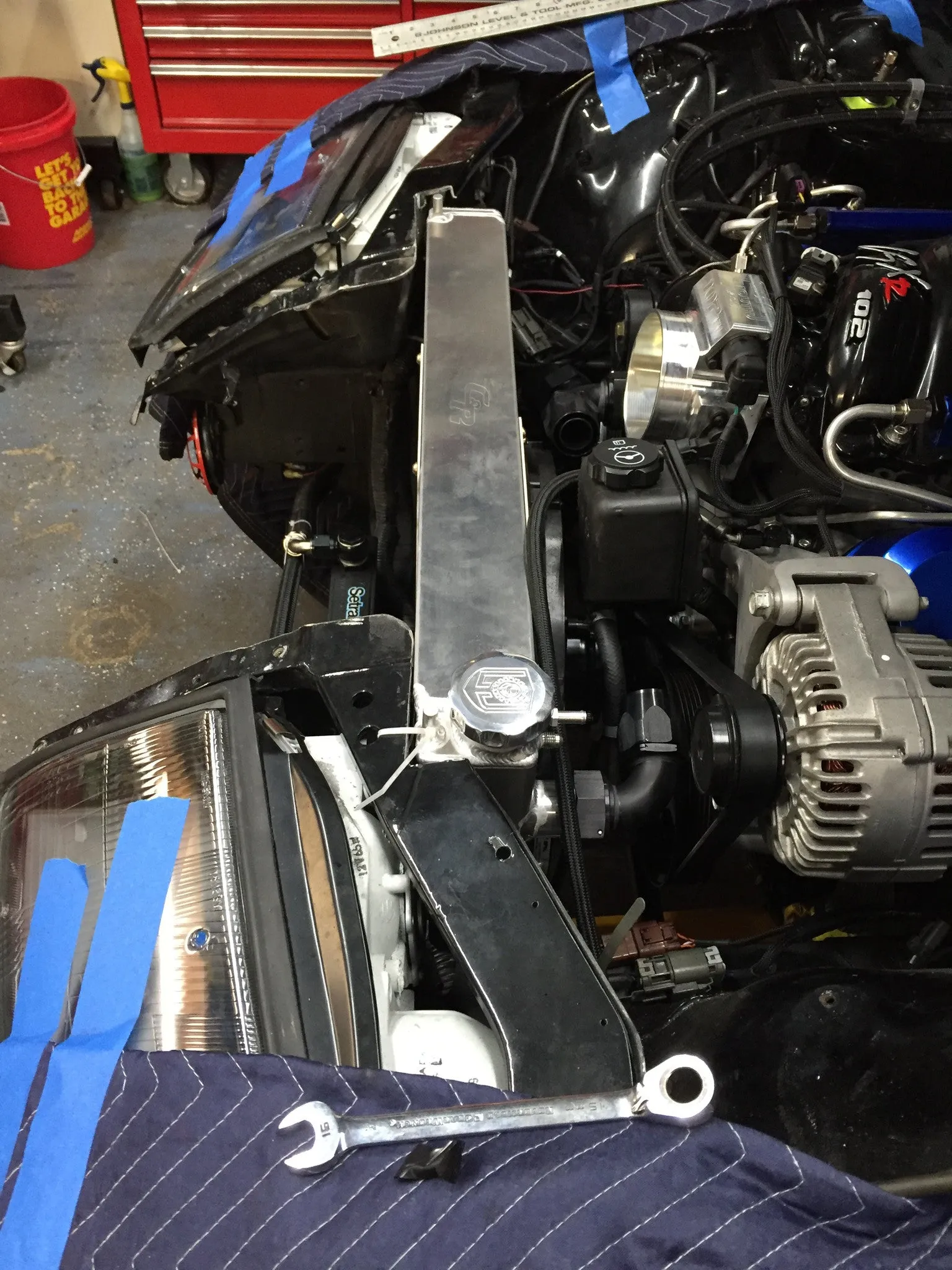

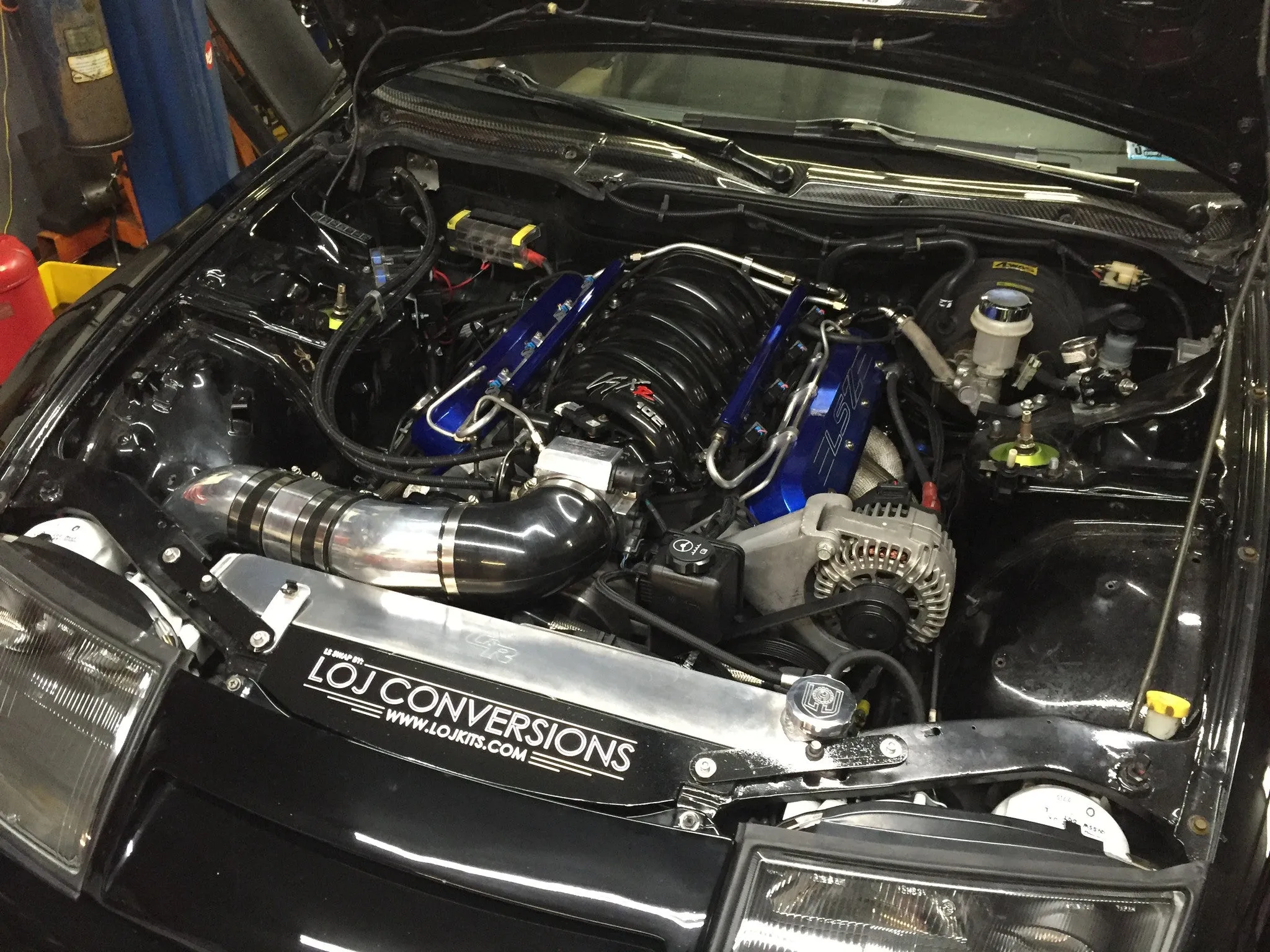

Installation of this radiator requires modification to the upper radiator support, removal of the factory hood latch, removal of the Air Conditioning System, and installation of hood pins. This radiator is the absolute largest capacity radiator that can be fitted to a 300ZX in an upright position behind the headlight buckets.

 Radiators are built to order and take approximately 3 weeks to deliver after order is placed.
