APC by Schneider Electric Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries, Start-up 5x8

APC by Schneider Electric Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries, Start-up 5x8

$ 33.95

$ 53.00

Save: $

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

General Information


Manufacturer Schneider Electric SA
Manufacturer Part Number E3MUPS80KHBS
Manufacturer Website Address
Brand Name APC by Schneider Electric
Product Line Easy UPS 3M

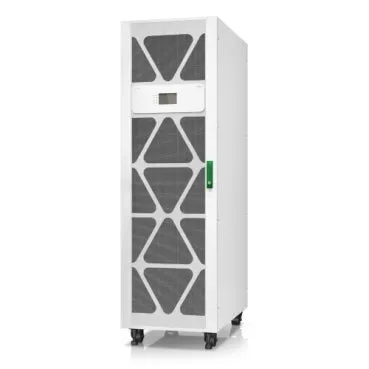

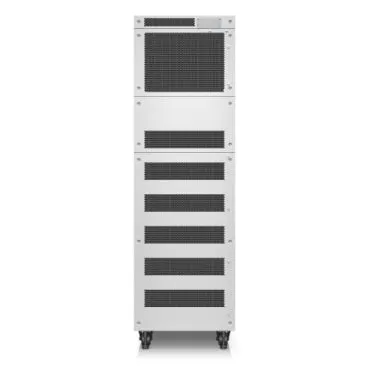

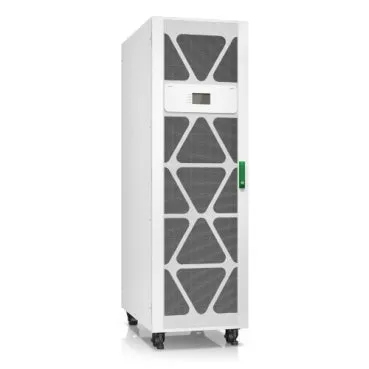

Product Name Easy UPS 3M 80kVA Tower UPS
Marketing Information

60-200kVA, 400V easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 3 phase UPS for small and medium data centers and other business critical applications.

The Schneider Electric Easy UPS 3M, part of the 3 phase Easy UPS series, is an easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60-200kVA 3 phase UPS ideal for small and medium data centers and other business critical applications. Easy UPS 3M supplies power stability and long-lasting performance with advanced product features, robust electrical specifications and compact design to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide operating temperature window and strong overload protection, all in a lightweight footprint. With its exceptional combination of low Total Cost of Ownership, competitive specifications, and ease of use, the Schneider Electric Easy UPS 3M is the easy choice for your business continuity in the data center or electrical room. Start-up service is included to optimize your system's performance, quality, and safety.

Product Type Double Conversion Online UPS

Technical Information


Overload Protection Yes
Phase Three Phase
Application/Usage
  • Data Center
  • Business
  • Critical System

Power Description


Load Capacity (VA) 80 kVA
Input Voltage
  • 400 V AC
  • 380 V AC
  • 415 V AC
Input Voltage Range 342 V AC - 477 V AC
Output Voltage
  • 380 V AC
  • 400 V AC
  • 415 V AC
Input Frequency 70 Hz
Output Frequency 60 Hz
Waveform Type Sine Wave

Interfaces/Ports


EPO Port Yes

Battery Information


DC System Voltage 240 V DC
Battery Characteristics Sealed
Battery Chemistry Lead Acid

Environmental Conditions


Maximum Operating Temperature 40°C
Maximum Operating Elevation 450 m
Maximum Storage Elevation 4.50 km
Storage Relative Humidity 0% - 95%
Sound Emission (A-Weighted) 65 dB(A)
Thermal Dissipation 14850 BTU/h

Physical Characteristics


Form Factor Tower
Height 1970 mm
Width 600 mm
Depth 1000 mm
Weight (Approximate) 339 kg
