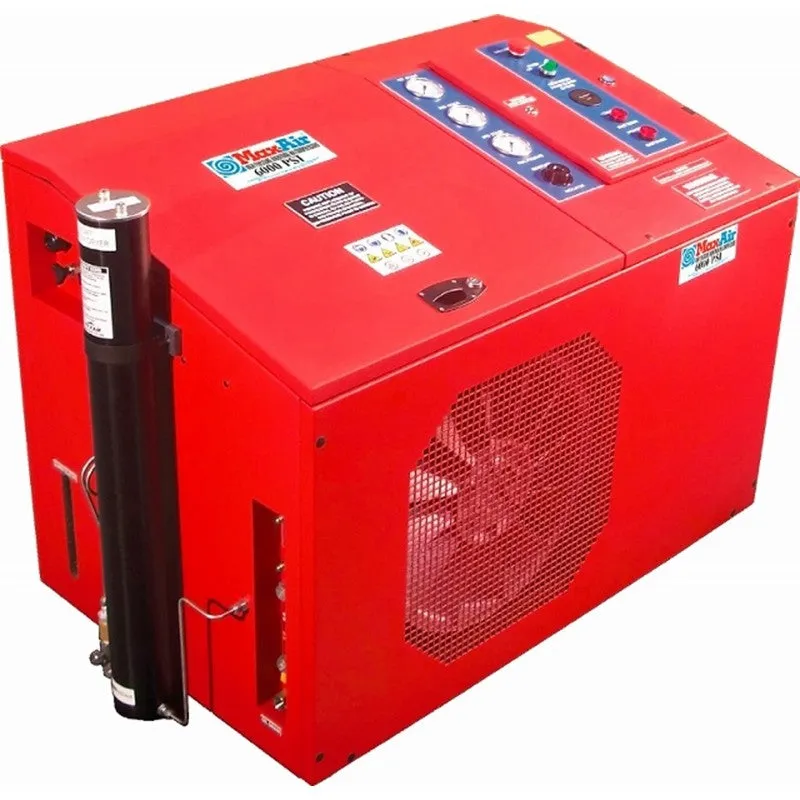

The most compact and light wright 6,000 psi high pressure breathing air compressor on the market today. Designed for high air demand, at a fast rate. Designed specifically for fire departments, large dive centers, military and commercial applications.
Standard Features:
- 6,000 PSI With 4:1 Safety Factor
- Disposable Tri-Chem Breathing Air Purification System
- Electric 7.5 HP, Single Phase 208/230 Volt Ac or Three Phase 208/230/460 Volt AC - Available In 60 Hz or 50 Hz
- Self Tensioning Drive Belt
- Deluxe, Conveniently Located (UL Listed®) Main Electrical Control Panel With Locking Door
- Magnetic Starter
- Thermal Overload Protection
- Step Down Fused Transformer
- 2 Timers & Relays
- Deluxe Interstage Gauge Panel With Stainless Steel Gauges
- All Seamless Stainless Steel Hard Plumbing Throughout (No Plastic Flexline Used)
- Automatic And Manual Condensate Purge, Drain System With Muffled 4 LT. Liquid Collector
- External Condensate Collector Level Sight Window
- Automatic Off/Auto Switch, Will Automatically Refill Cascade, as Needed
- Final Automatic Shut Off Pressure Switch
- Emergency Stop, Mushroom Type Push Button
- Digital Hour Counter
- Low Oil Shut Down Switch With Fault Indicator Light
- High Temperature Shut Down Switch on Final Stage With Fault Indicator Light
- Carbon Monoxide/Moisture Visual Indicator Mounted on Gauge Panel
- External Oil Level Sight Glass Indicator With Oil Drain Valve
- Pressure Safety Relief Valve at All Stages
- Dual Purified Air Outlets, One For Direct Fill & One For Cascade
- Locking Main Access Door & Electric Control Panel
- Fully Enclosed, Duracoat Powder Coated, Sound Attenuated Cabinet With Easylift Access Door For Maintenance
- Furnished With Two (2) Each Fill Hose Assy For SCBA or SCUBA Cylinder Fill Valves With On/Off & Bleeder Valve
- One Year Warranty
- Dimensions: Length 48¾” X Depth 28” X Height 36”
- Weight: 500 LBS
Factory Options:
- Purification Upgrade to 79,000 CFT of Grade “E” Breathing Air @ 72F (146 Hours)
- Electronic Carbon Monoxide Monitor With Shut Down Feature
- Electronic Cartridge Life Sensor With Shut Down Feature
- Electronic Moisture Monitor With Shut Down Feature
