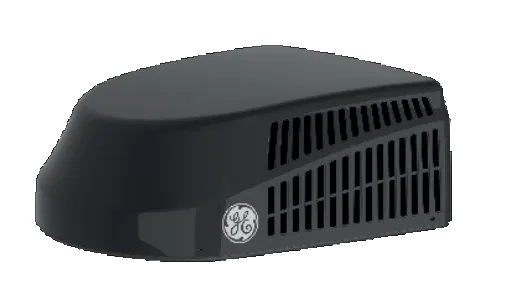

ARC15AACB - GE 15,000 BTU RV Air Conditioner - Black
THE GE RV AIR CONDITIONERS WILL ONLY OPERATE WITH GE ACCESSORIES!!!!
SHIPPING FOR THIS PRODUCT IS $99
FOR A NEW DUCTED INSTALLATIONS OPERATED BY WALL THERMOSTAT YOU WILL NEED THE FOLLOWING PRODUCTS
RARED1A DUCTED CEILING ASM
RAREC2A ELECTRONIC CONTROL
RARWT2B/RARWT2W THERMOSTAT (BLACK OR WHITE)
FOR A NEW NON-DUCTED INSTALLATIONS OPERATED BY WALL THERMOSTAT YOU WILL NEED THE FOLLOWING PRODUCTS
RAREN1A NON-DUCTED CEILING ASM
RAREC2A ELECTRONIC CONTROL
RARWT2B/RARWT2W THERMOSTAT (BLACK OR WHITE)
FOR A NEW NON-DUCTED MANUAL CONTROL INSTALLATION YOU WILL NEED THE FOLLOWING PRODUCT
RARMN1A - NON-DUCTED CEILING ASM
Description
RVAC COOL SERIES - Air Conditioning for Mobile Living
Powerful, reliable cooling performance Over 70 years of room air comfort expertise providing consistently comfortable temperatures
High air flow and customizable comfort Flexibility of where it is most desired is achieved through five discharge vents
Durable by design Features include corrosion-resistant coatings, heavy-duty motor support brackets, reinforced screw holes and extensive vibration control testing
Quiet operation High-performance motor with sound dampening rubber-grommets reduce noise and vibration throughout the coach
"Cool" aerodynamic appearance High grade, ultra- coating and automotive grade polymer shroud with a glossy, attractive appearance complementing the overall exterior of the RV
Intuitive thermostat Easy to ready back lit LCD "communicates" giving diagnostic feedback
Easy installation - "EZ InStall" control box Design allows the controls to be mounted to the ceiling creating hands free installation of electrical connections
| Cooling BTUH (MAX) | 15000.0 |
| Cooling EER (BTUH / Watt) | 6.1 |
| Case Color | Black Ice |
| Amps | 20 |
| Voltage/Hertz/Phase | 115/60/1 |
| Power Factor | .96 |
| Compatible with Interior Ceiling Assemblies | RARMN1A. RAREN1A. RARED1A |
| Overall Height | 13 9/10" |
| Approximate Shipping Weight | 82 lbs |
| Overall Depth | 32 4/5" |
| Overall Width | 27 7/10" |
| Net Weight | 80 lbs |

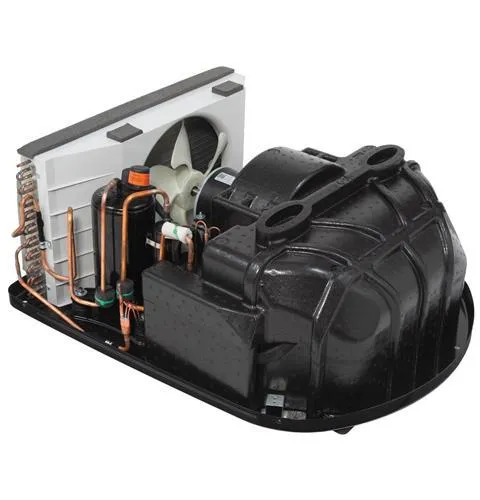

| RVAC Features | - Easy Clean Coils. - Mounting Slots for Bolts. - Shallow Lip High Strength Base Pan. - Automotive Grade ASA Plastic Shroud. - Anti-Vibration Soft Tubing Design. - Isolated Rubber Fan Mounts. - Sealed Fan Motor. - Easy Access Molded Evaporator Cover (no tools required) - Full Wrap Foam Packaging |
| Sensible Heat Ratio | 75% |
| Fan Speed Selections | 3 - Lo//High |
| Style | Exterior |
| Refrigerant Type | R-410A |
| Indoor/Outdoor Operation Temperature (Cooling/Heating) | 0 to 115 degrees |
WARRANTY | |
|---|---|
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
