Name: AIMS - 30KW Pure Sine Wave Inverter Charger - 300 VDC | 208 VAC 3 Phase - PICOGLF30KW300V2083P
SKU: 850645

This 30kW inverter charger from AIMS Power is a massive DC to AC pure sine option for you. Introducing the NEW AIMS extra large power inverter charger product line in 240 split phase or 208 three phase.

This off-grid, back up power inverter is perfect for businesses, large homes, farms or other applications that require huge amounts of back-up power. These units have a large DC input range allowing you to create your own DC input source such as solar, wind, hydro and deep cycle batteries. You don’t even need to use batteries.

The higher DC input enables you to operate more efficiently when using this inverter. Its modular, simple and easy design allows for convenient access for maintenance and adjustments. The IPM provides high efficiency and stable performance prolonging the overall life of this inverter. The inverter also includes a power LCD display monitoring DC input, output frequency, phase voltage, phase current, AC bypass input voltage, output power kWH, time and date, temperature and fault codes. We also offer extended warranties. UL Listed.

Features

Pure sine wave technology
DC to AC power inverter
30,000-200,000 watt models available for off-grid back up power – 50KW in stock. 30KW, 80KW, 120KW and 200KW models are available via special order and ship within 12 weeks
Simple design for convenient maintenance

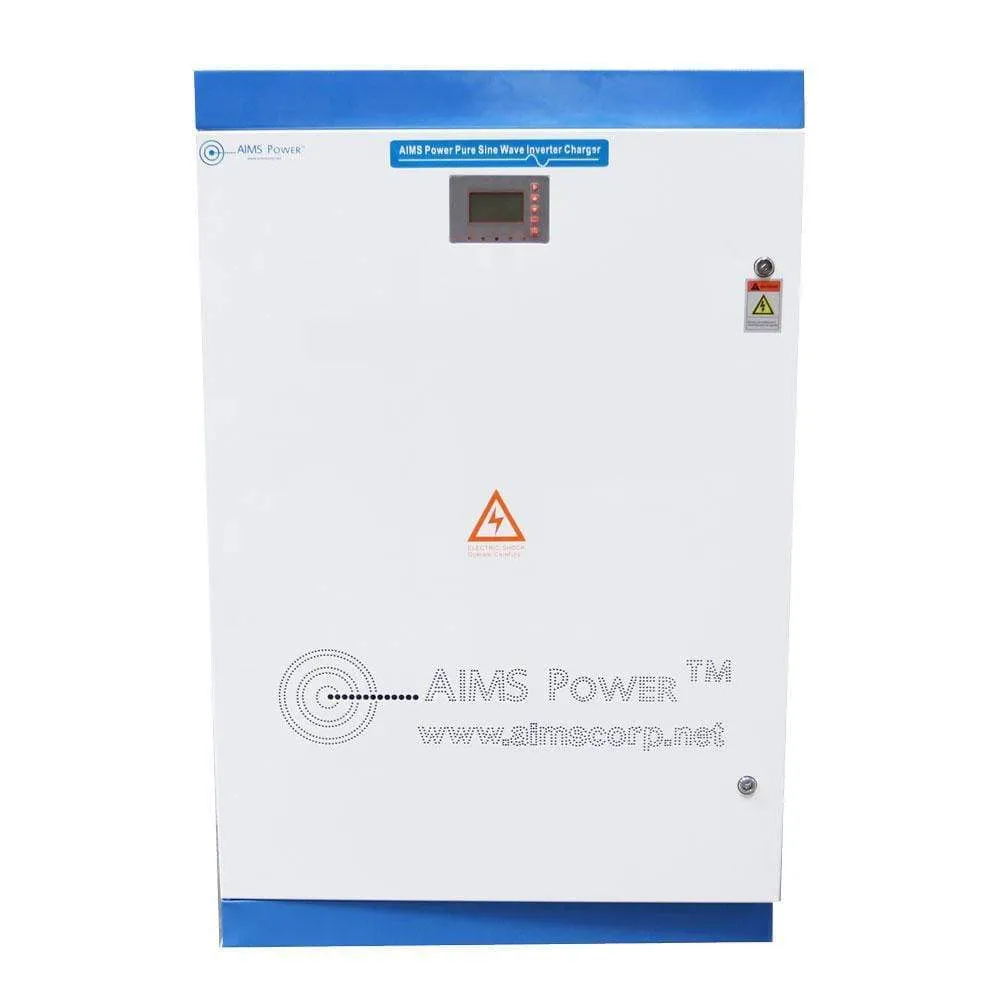

LCD panel
50 and 60 Hz
Adjustable programmable output voltage: -40% to 20% of rated voltage
Adjustable DC input voltage, over voltage, under voltage, recovery time can all be set via the LCD panel
Step-down Voltage and Variable Frequency start up modes
Efficiency – >94%
Low frequency preventing RF interference
Low idle consumption
AC bypass input function
Ideal for DC EMerge 380-volt DC
RS485 remote monitoring optional
Certifications: CE, CEC, CSA22.2, UL1741 and ERAC certified

Specifications:

DC Input

DC input – 300 volt
DC input range – 200-600 Vdc
Rated current amps – 100 A

AC Input – 120 / 208 Vac

AC Output

30,000 – 30kw (50KW, 80KW, 120KW and 300KW models available via special order)
Pure sine wave
208 VAC ( - 3%) 110/120/220/230/240/280/400/415/440 can be customized
Three phase L1 L2 L3 N Earth
Current: 83.3 A phase current
Adjustable 50/60 hz
Power Factor: >0.95
Inverter efficiency: >94%
LCD Display
Voltage accuracy – Load balancing<1%, Unbalance <5%
THD: linear load ,2%, nonlinear load >3%
No load amps: 2% of inverter size depending on DC voltage (1000 watts / DC input voltage = amps)
