Clean power supply
The Clean Power Supply components from Accuphase are products that remove noise and impurities from the AC power line through a groundbreaking new approach, resulting in a drastic improvement of the sound and picture quality of connected audio and video equipment.
Every audio component draws all of its energy from the power supply which in turn is connected to the AC power grid. Without relying on an oscillator, the reference waveform is created with further improved accuracy and is linked to the power section by a balanced connection to ensure incredibly low distortion in the output waveform. Because the PS-1230 can deliver as much as 1200 VA (1000 VA), it covers the requirements of almost any high-quality A/V system currently on the market.
Features
- AC voltage stabilizer based on waveform shaping technology
- Acts as a source of extremely clean energy
- Low-distortion reference waveform generator
- Highly effective waveform compensation
- Outstanding current capability
- Superb interference rejection

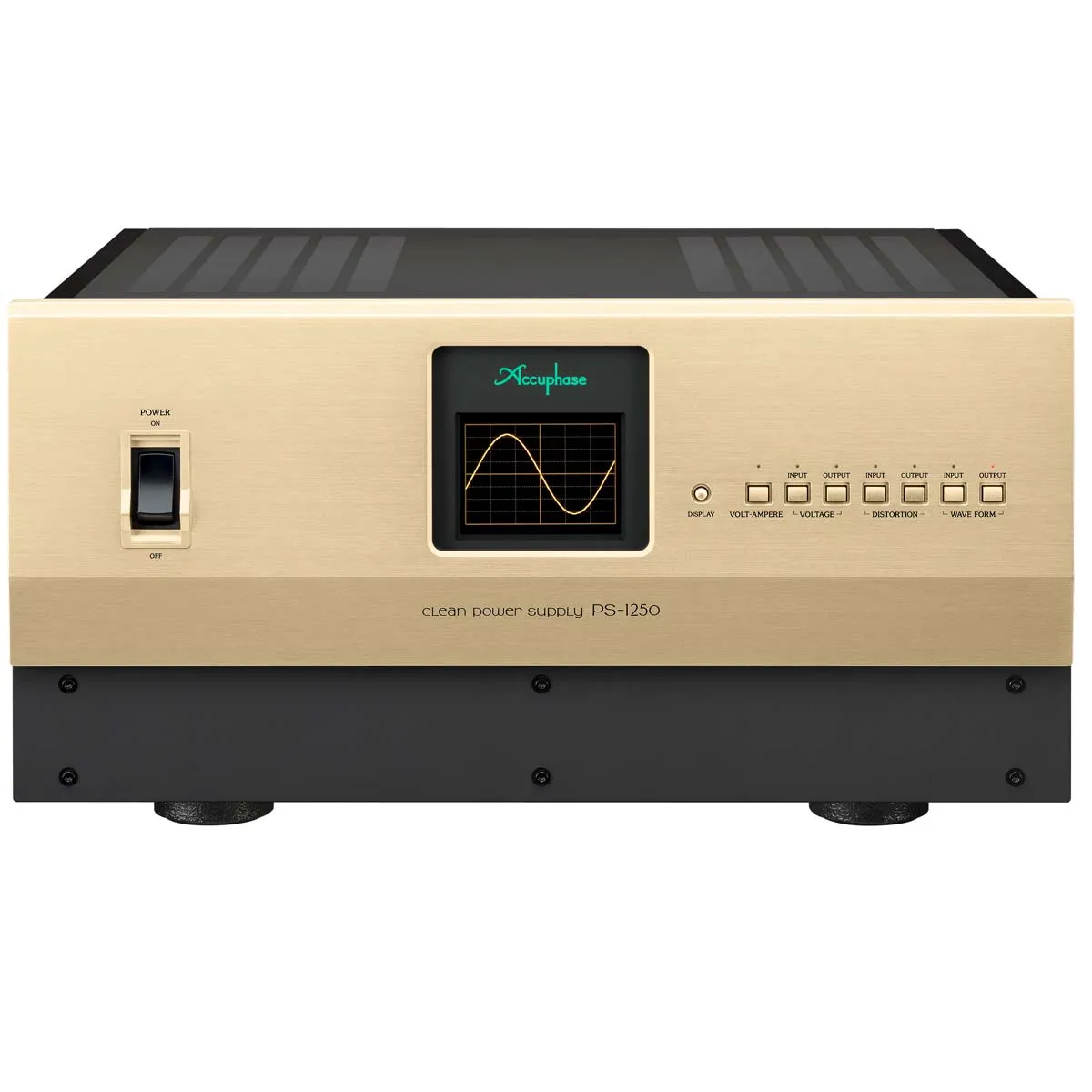

- Built-in meter for monitoring vital parameters including output power, input/output voltage, and input/output distortion
- Advanced protection features

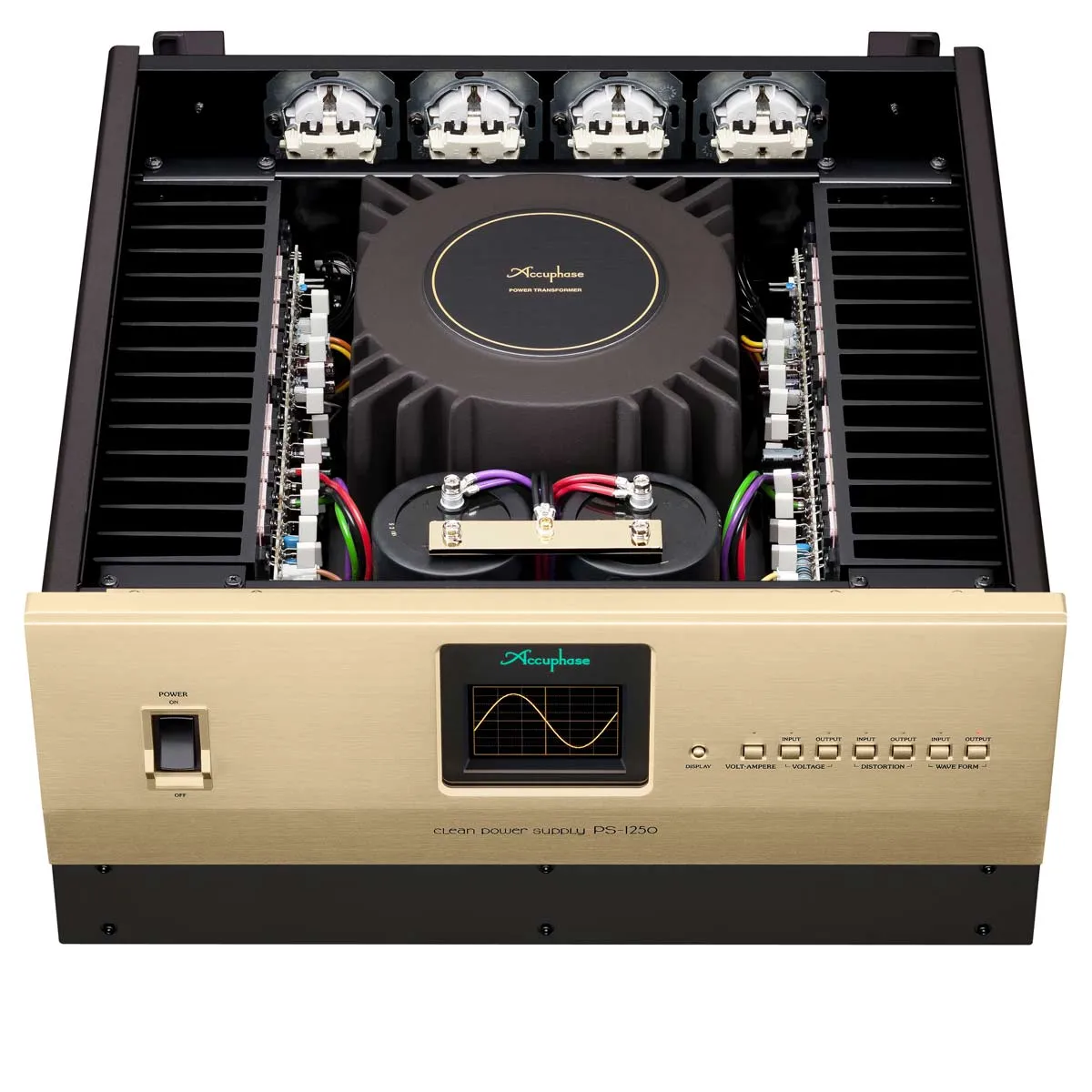

- Large high-efficiency toroidal transformer
Specifications
- Rated output capacity: 1,200 VA (continuous)
- Rated output voltage: 230V AC
- Rated output current: 5.2A
- Instantaneous peak current capacity: 80A
- Output waveform THD: 0.08% or less
- No load power consumption: 50W
- Maximum Dimensions: Width 465 mm, Height 243 mm, Depth 500 mm
- Mass: 41.7 kg net, 51 kg in shipping carton
