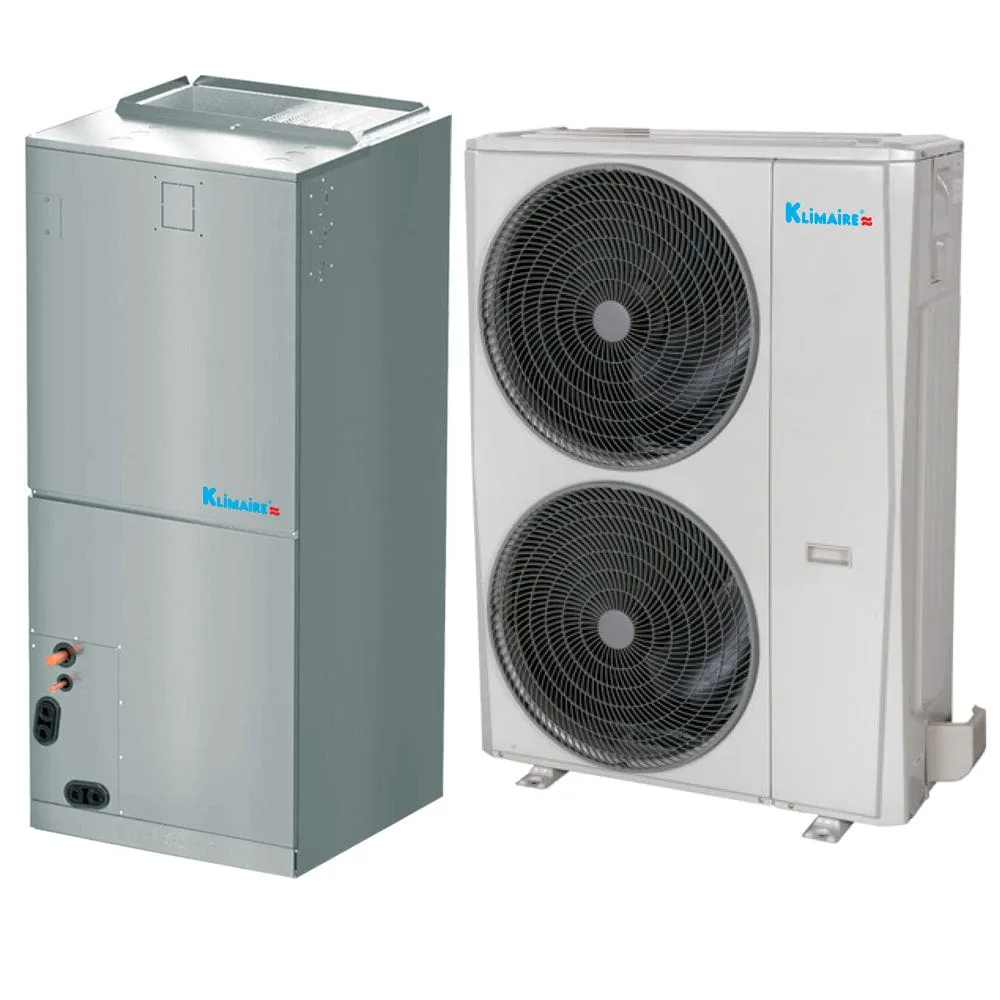

Klimaire Fit Pro Central Ducted systems are DC Inverter
Side-discharge small footprint condensing unit and an air handling unit. This product offers and takes customer and contractor concerns into account. Our quite operating compact outdoor unit can be installed on a wall bracket, under a deck or on a balcony, or even stacked to provide comfort for larger living spaces.

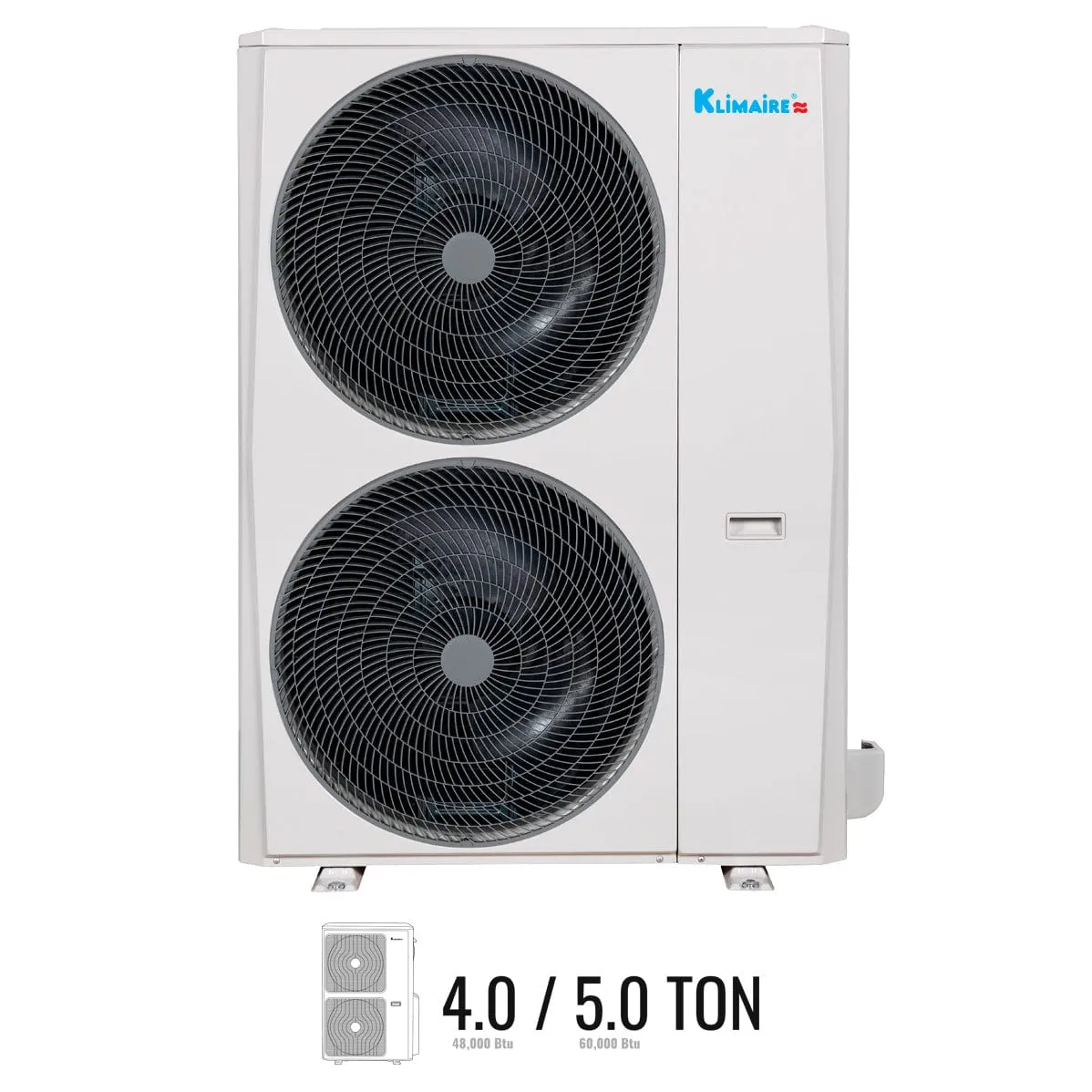

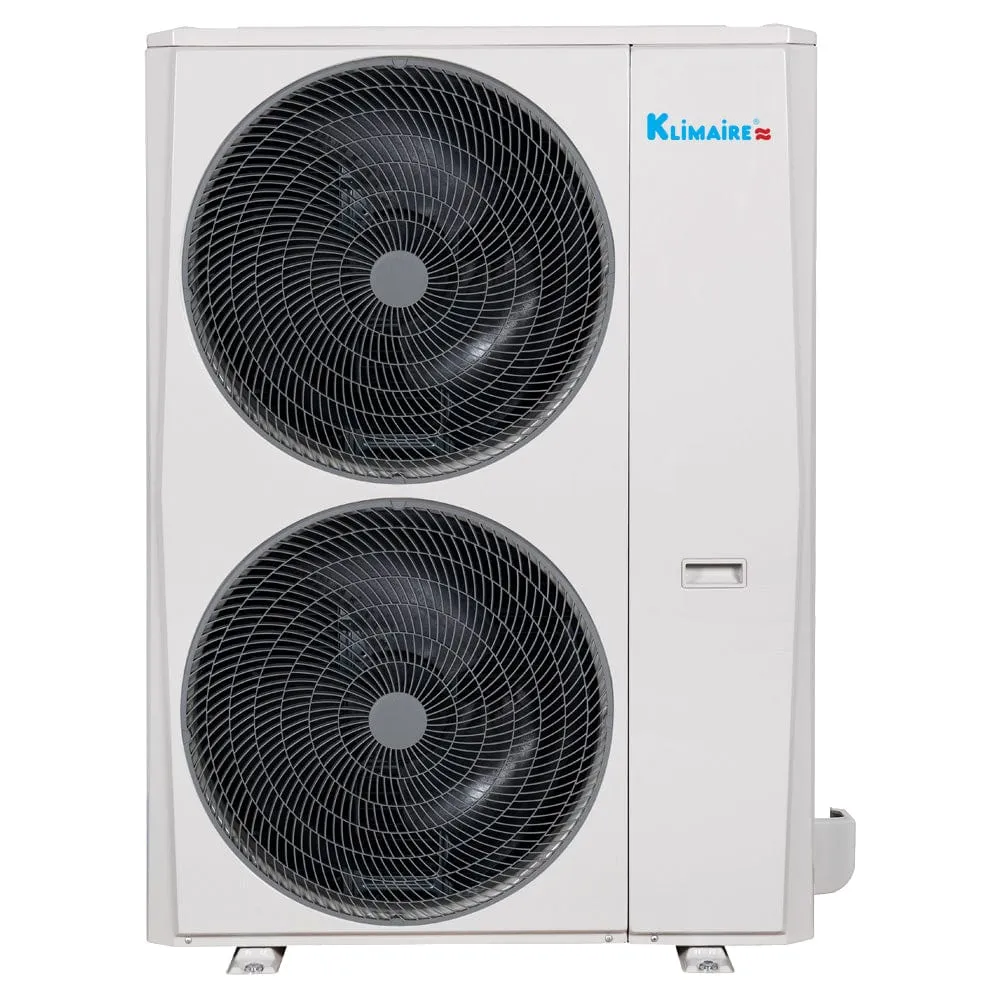

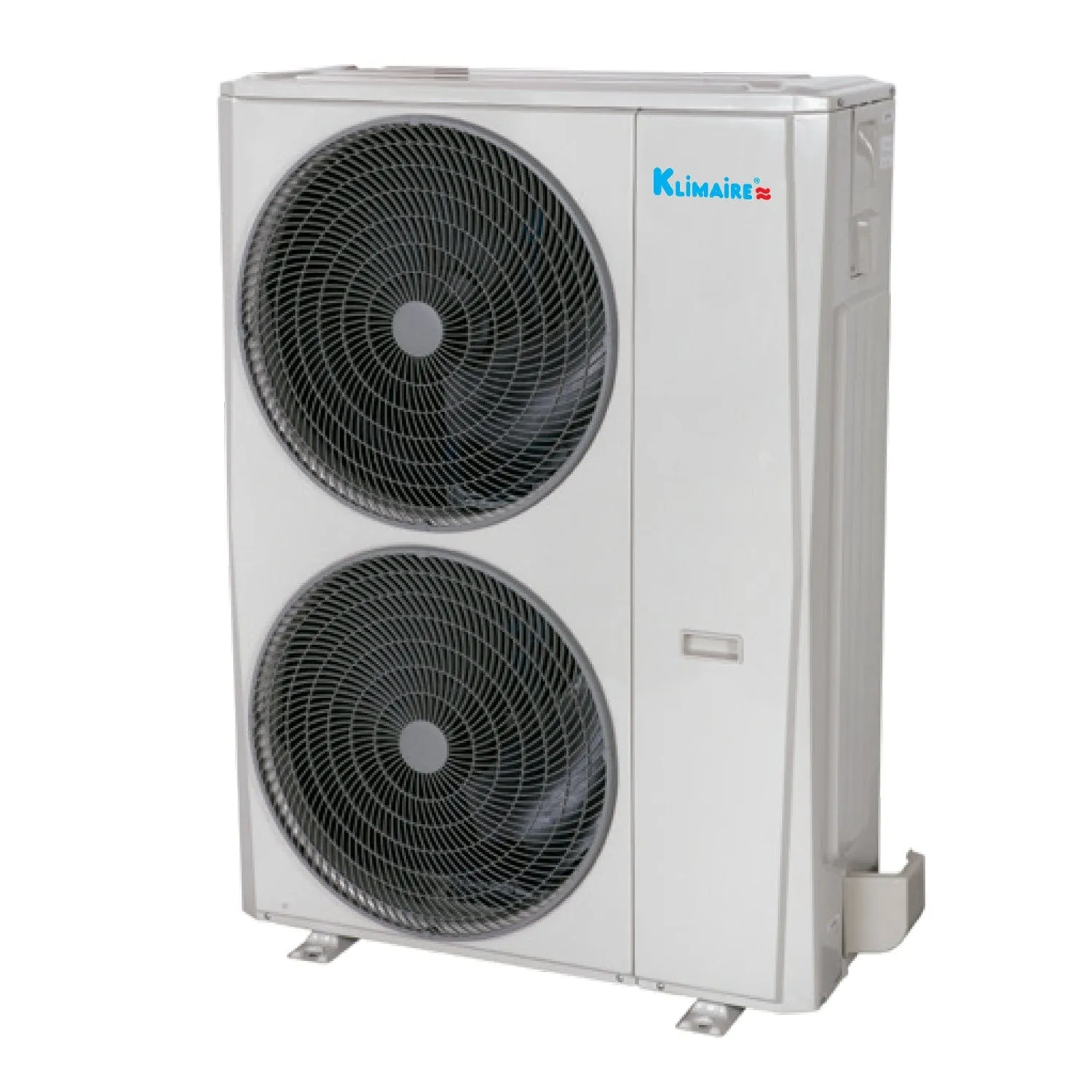

KOIF48H2-1S | Outdoor Heat Pump Unit
The nominal Unit capacity is 48,000 BTU/h or a 2-ton. Its capacity ranges between 15,000 -48,000 BTU/h in cooling and 11,000 – 55,000 in heating modes. Smart Inverter, by adjusting the compressor capacity reduces operating costs, allows for quicker, smoother, and more efficient heating and cooling.
Standard Features
- Gold fin copper coil: helps to fight against corrosion in salty and harsh environments.
- Darin pan heater: prevents ice accumulation for low ambient operations to improve heat transfer.
- Can be matched with any standard air handler or a coil controlled by 24V heat pump thermostat.
- Smart dusting function: Reverses the fan operation to clean dust, sand, other debris from the coil.
- Low ambient heating and cooling.
- Can be combined with standard air handler or a coil.
- Self-Diagnostic.

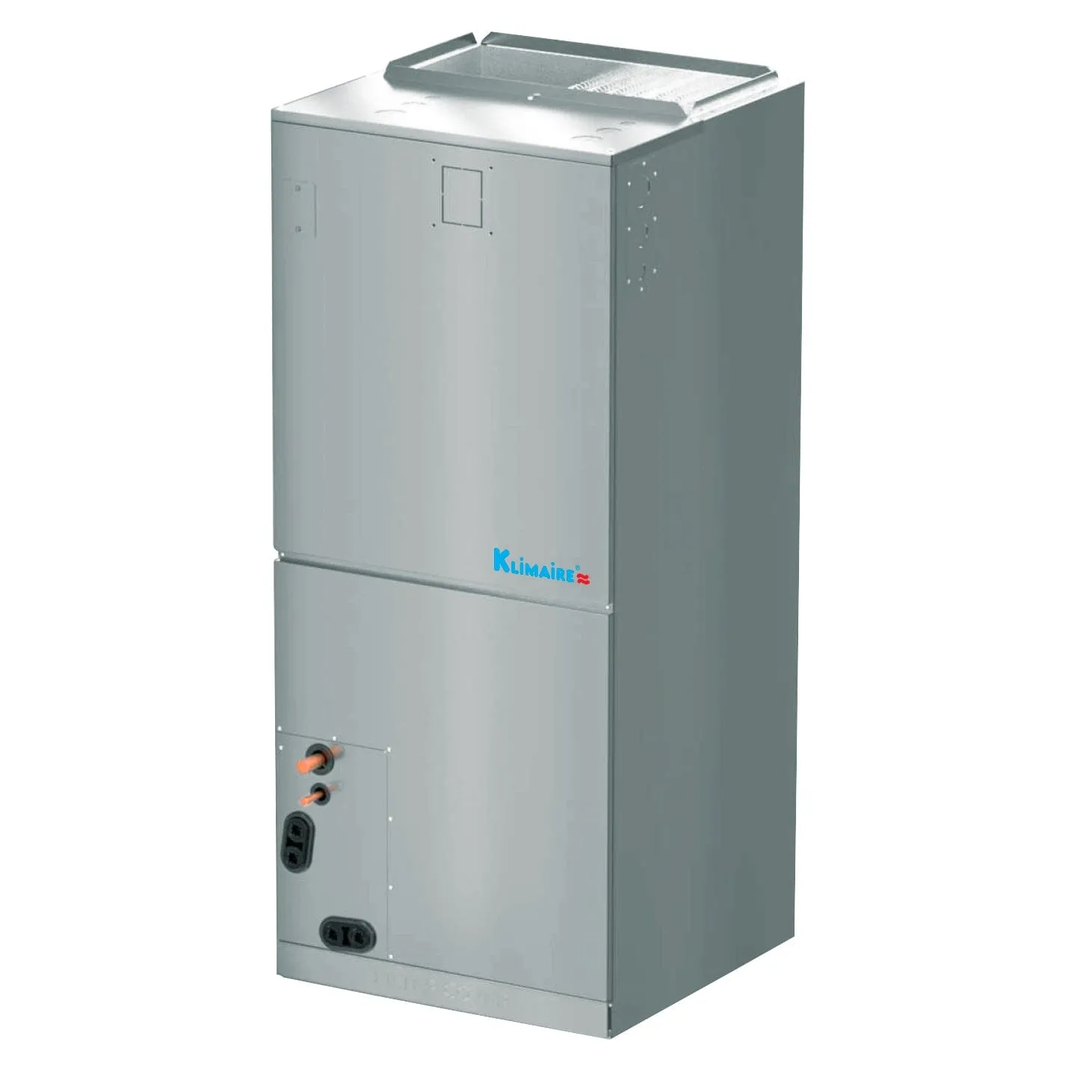

KIDF48H2-1S | Indoor Unit
Well insulated galvanized durable cabinet has less than 2% air leakage. It is equipped with a noncorrosive composite drain pan. Packed with a wired control thermostat provides a Wi-Fi connection with many comfort and convenient functions.
Improved Performance (Btu/h/W)
SEER2: 15.6 | HSPF2: 9.4 | HSPF5: 7.7 | EER2: 8.2
Standard Features
- Multi position compatible with up flow /horizontal (left/right) configuration.
- Optional auxiliary electric heater kit options.
- High static performance with self-adjusting ECM motor 0-0.8 In. wg.
- Filter rack.
- Error code display functionality.
- Aluminum coil for longer life and better heat transfer.
- IAQ equipment (UV light and humidifier) dedicated wiring port.
- Included wired and wireless controls for maximum control and comfort
- Factory installed access valve for easy maintenance.
- Braze or Flare connection possible with factory provided kit when soldering is not possible.

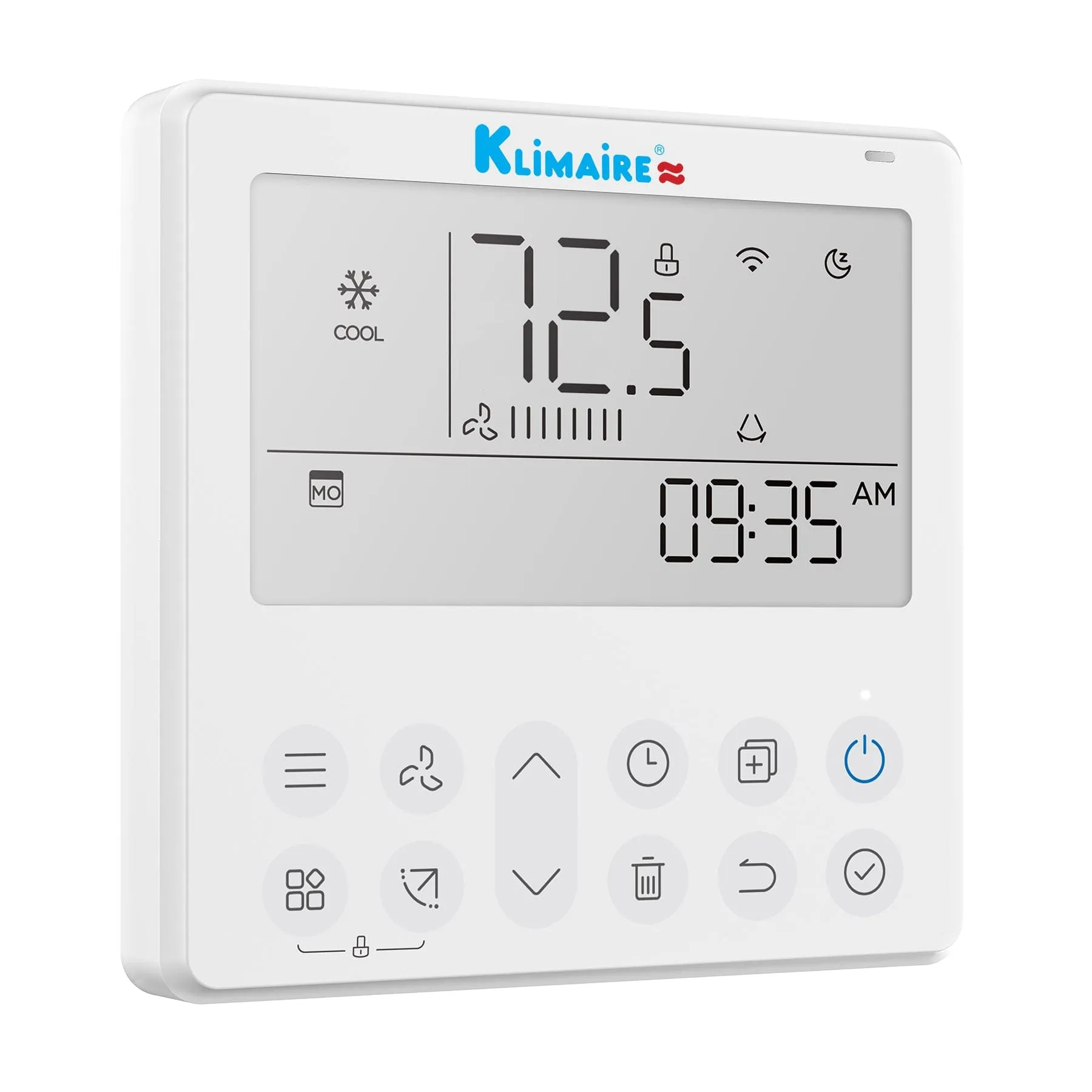

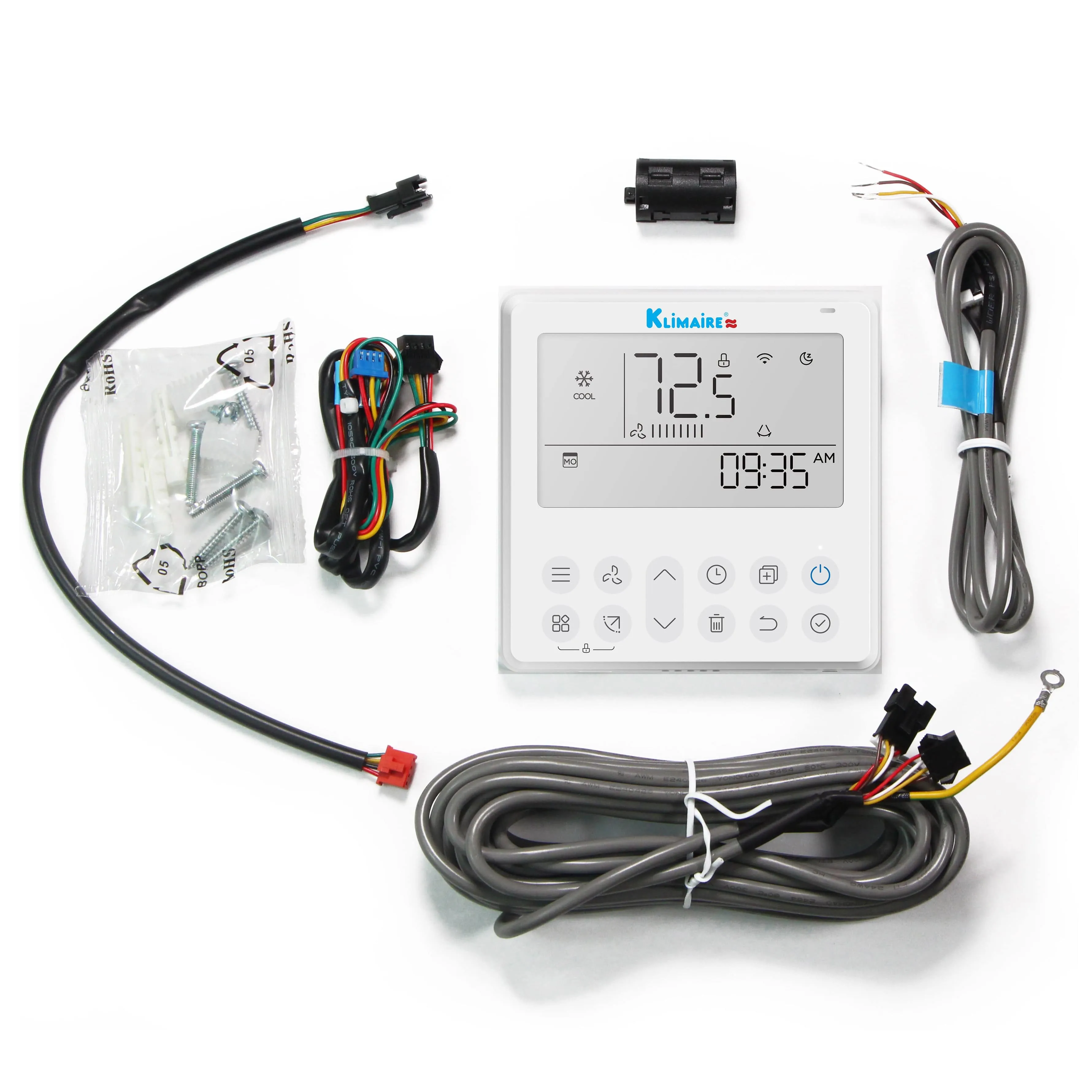

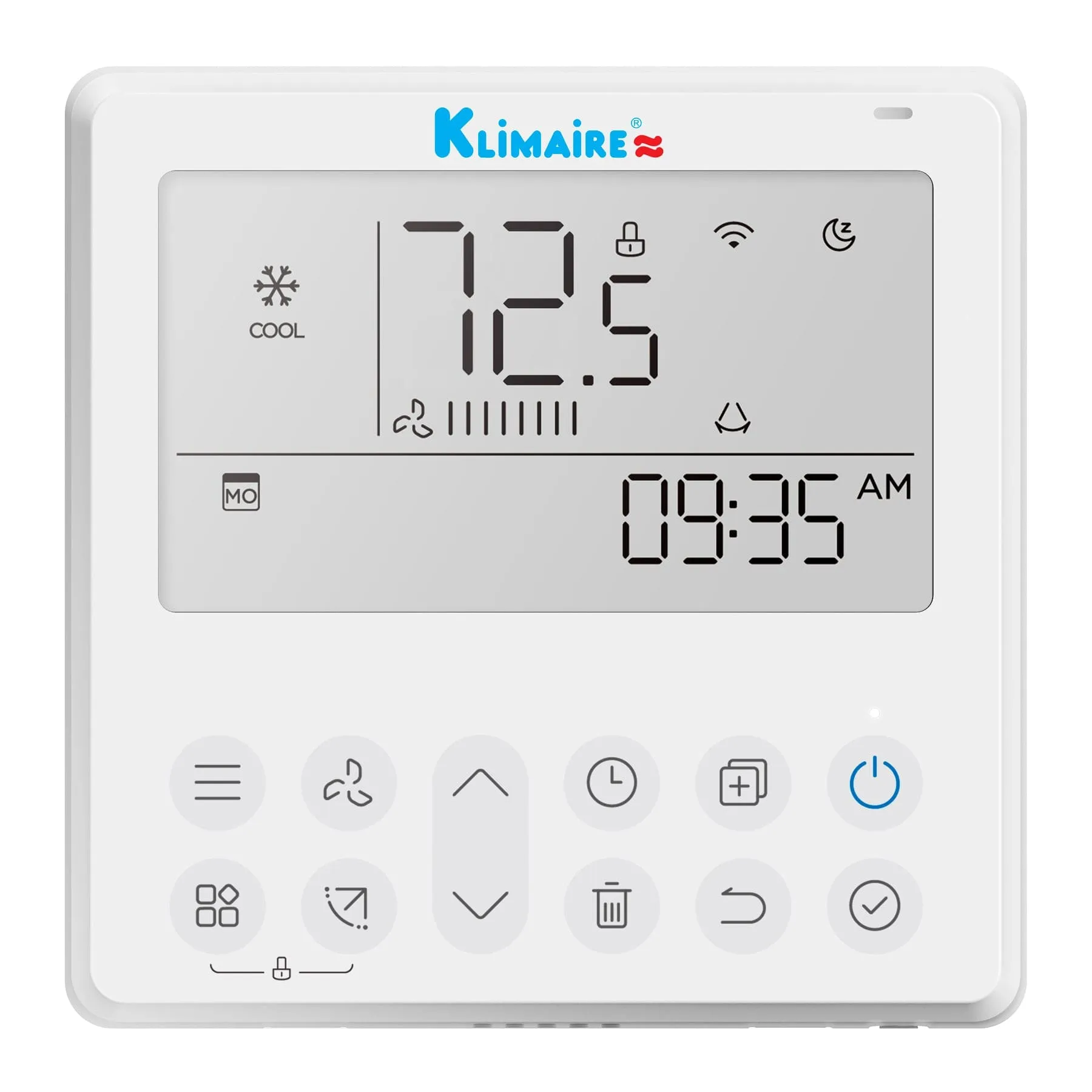

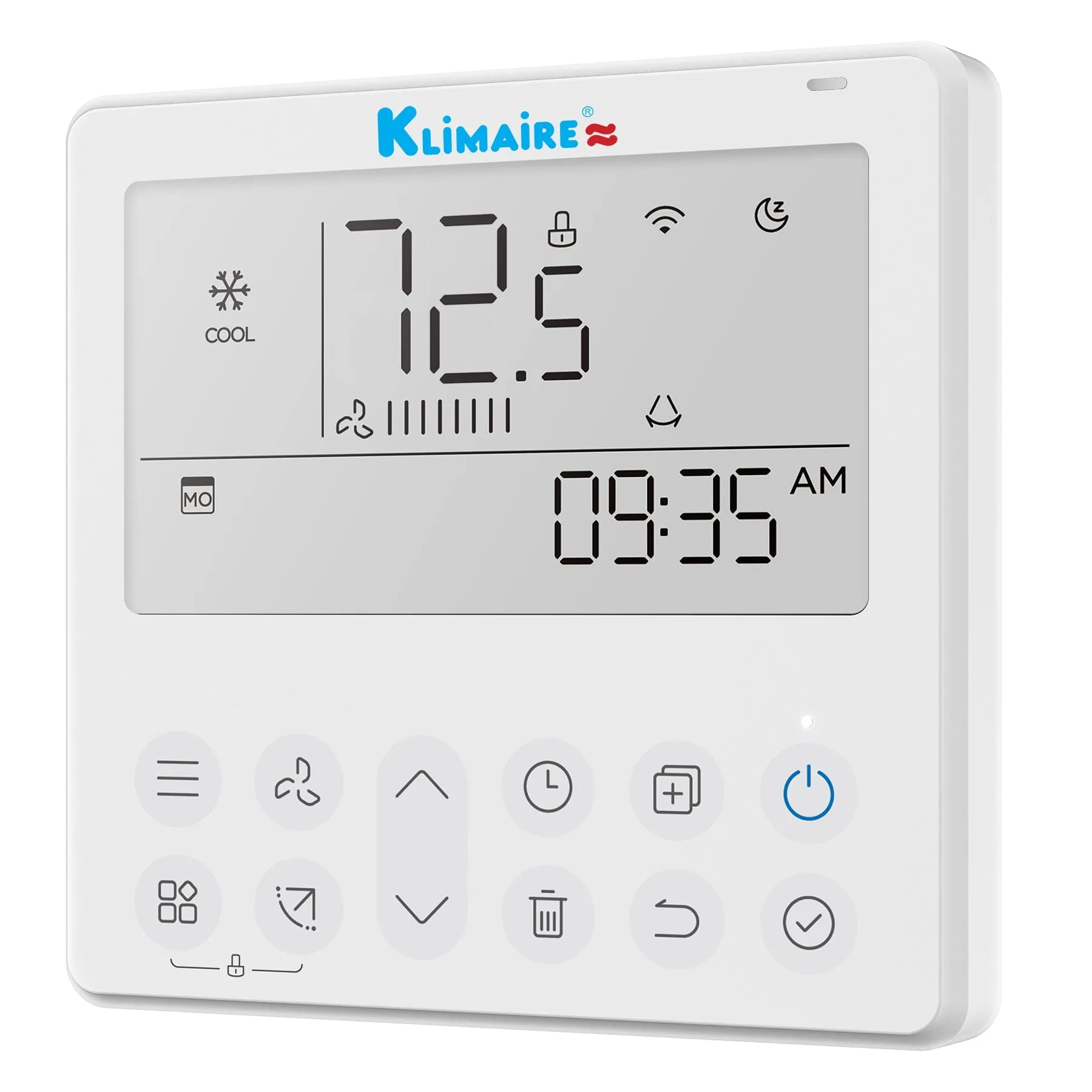

Wired Remote Control
|
Features
|

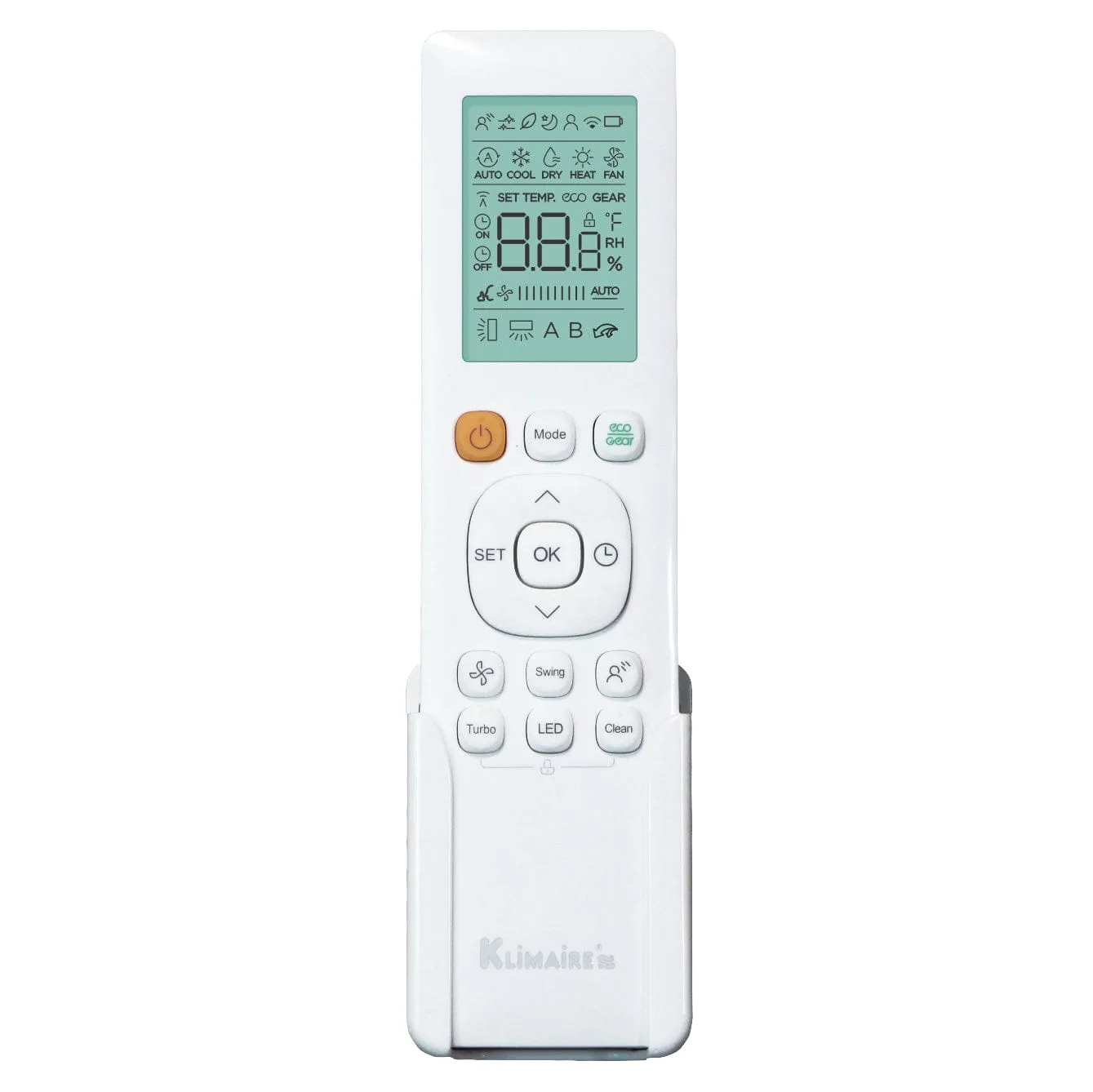

Wireless Remote Control
|
With wall bracket holder |
Allows you to manage comfort settings from any location within 26 ft away from your wired control and enjoy the convenience of the follow me function as if the thermostat were following you. |
Remotely managed
| Remotely manage your mini-split system using a simple smartphone, tablet or PC via the Internet. Your Klimaire Wi-Fi enabled air conditioner lets you control your ductless mini split air conditioner using your smartphone or tablet from anywhere internet connection is available. Our free IOS and Android smartphone app gives you the freedom to instantly adjust your settings saving you time and money on energy consumption and cost. |
WHAT’S INCLUDED

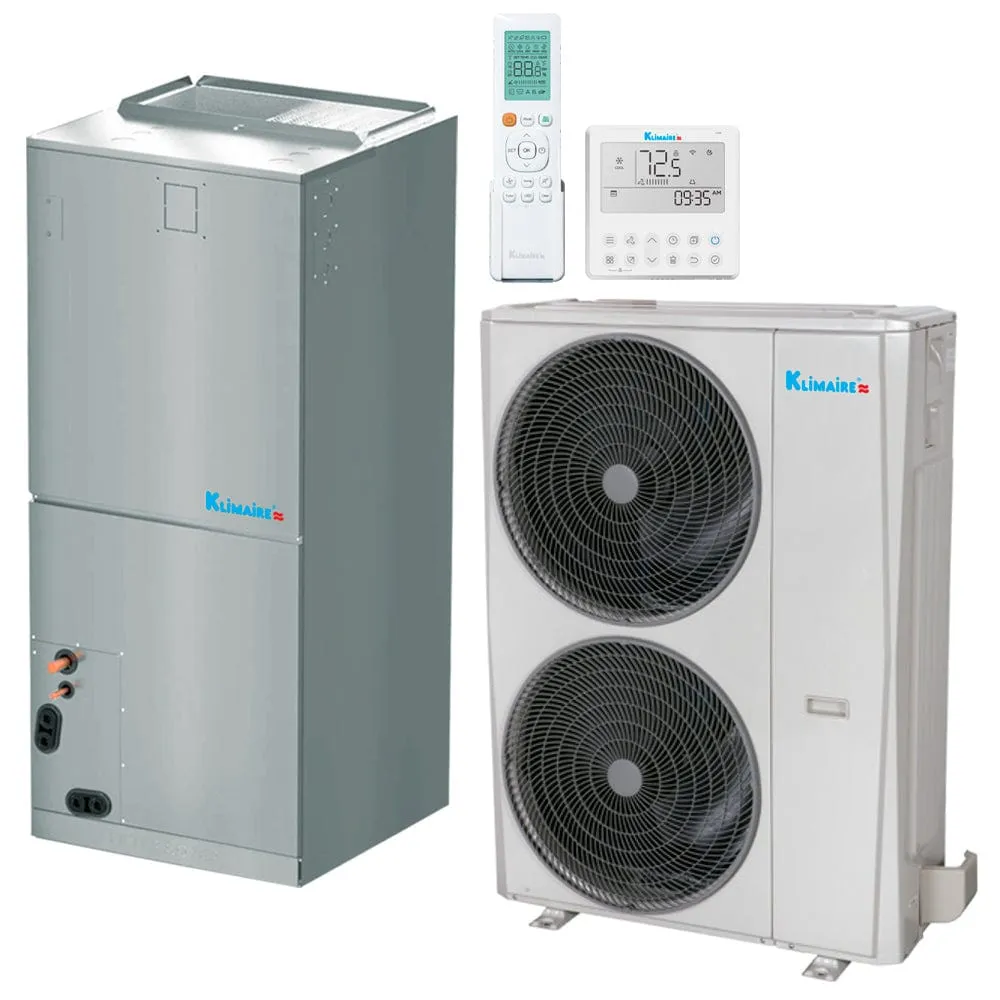

Your Klimaire Central Air Conditioner Heat Pump System Heat & Cool Comes With:
- KOIF48H2-1S | Outdoor Unit
- KIDF48H2-1S | Indoor Unit
- Wireless Remote Control with wall bracket holder
- Wired Remote Thermostat
- Installation manual
- User’s Manual
- Wired and Wireless Controls User’s Manuals
- Manufacturer Warranty
MANUFACTURER WARRANTY
- 5 Year parts warranty
- 7 Year compressor warranty
